14-24mm F2.8 Sigma DG HSM Art Lens Official Topic
  • image

    specs


  • 43 Replies sorted by
  • sa10704.jpg
    794 x 559 - 51K
    797 x 556 - 51K
    797 x 528 - 74K
  • Review


    14mm

    Center sharpness remains high through from f/2.8 to f/11, with f/16 and f/22 being adversely affected by diffraction. The edges aren't quite as sharp as the center, with f/4 to f/11 producing the sharpest results.

    24mm

    Center sharpness remains high through from f/4 to f/11, with f/16 and f/22 being adversely affected by diffraction. The edges aren't quite as sharp as the center, with f/5.6 to f/11 producing the sharpest results.

    https://www.photographyblog.com/reviews/sigma_14_24mm_f2_8_dg_dn_review

    800 x 536 - 62K
  • I wish they would have made a 12-24 instead of 14mm

  • image

    800 x 473 - 48K
  • Vitaly, maybe I'm wrong, but I think this lens (and the 35 and 45) is a completely new one designed from scratch for mirrorles, not just the adapted dslr version of the topic. (Delete the message if you want!)

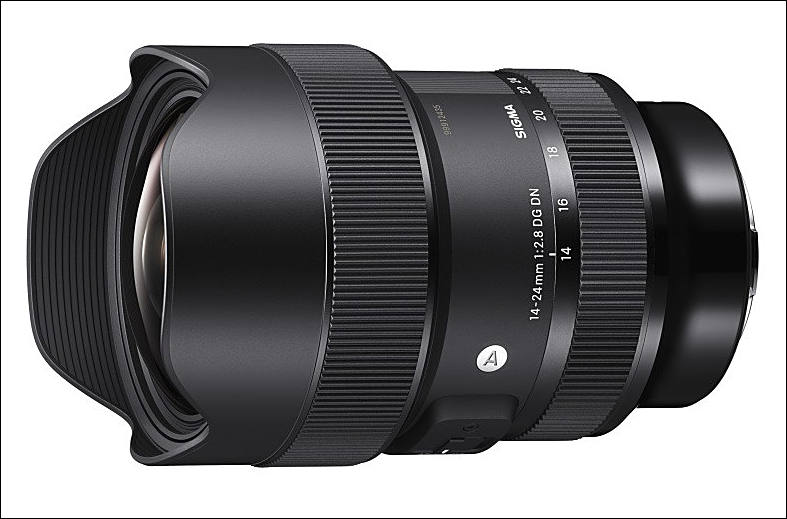

  • E-Mount and L-Mount versions


    A wide-angle zoom with remarkable resolution that is perfect for full-frame mirrorless cameras

    1. Newly developed high-performance lens series for full-frame mirrorless cameras
    2. High-resolution image quality developed with exclusive low dispersion glass elements and NPC (Nano Porous Coating)
    3. Substantial functions enable user confidence, even in tough environments
    4. Rear filter holder as a standard accessory

    Launch: August, 2019

    SRP: £1459.99 (including VAT)

    Case, Cover Lens Cap (LC850-01) supplied

    Available AF mount: L-Mount, Sony E-mount

    Ultimate large-diameter, wide-angle zoom lens optimized for full-frame mirrorless cameras -“The definitive lens for astrophotography” with astonishing resolution.

    Many photographers like to use low sensitivity shooting to minimize noise as much as they can. Particularly in the photography of starry skies, bright wide-angle lenses are often selected because they can efficiently collect weak light. The 14-24mm F2.8 DG DN | Art has been developed as the ultimate large-diameter, wide-angle zoom lens by optimizing the standard specifications for photographing starry skies for full-frame mirrorless cameras. The uniform rendering performance and outstanding resolution to the edge of the frame make it the “definitive lens for astrophotography.” By utilizing the characteristics of the short flange focal length, this new-generation large-diameter zoom lens combines both compact body and unprecedented high-resolution image quality.

    Key features

    Newly developed high-performance lens series for full-frame mirrorless cameras

    With mirrorless cameras emerging at an accelerated pace, expectations towards lenses suited for high-performance full-frame mirrorless cameras are growing. Unfortunately, many photographers may feel that they have little choices for mirrorless lens systems in terms of performance, size, extensive lineup, and due to the burden of having to use multiple systems. SIGMA has thus developed and proposes this new full-frame mirrorless lens series as the optimal solution to this challenge.

    SIGMA will develop interchangeable lenses with unprecedented specifications and performance by designs that benefit from the short flange focal length feature of mirrorless cameras while retaining the concepts of “Contemporary,” “Art,” and “Sports.” We will announce three models as the first lenses from this series.

    45mm F2.8 DG DN | Contemporary

    Compact size is realized while maintaining high image quality and is compatible with full-frame mirrorless cameras. This prime lens refines the concept of the Contemporary line.

    35mm F1.2 DG DN | Art

    The world’s first* 35mm F1.2 as L-Mount and Sony E-mount lens for full-frame mirrorless system. The high image quality of the Art line that pursues ultimate performance is realized by F1.2 maximum aperture.

    14-24mm F2.8 DG DN | Art

    Large-diameter, ultra-wide-angle zoom lens for full-frame mirrorless cameras.

    While pursuing the ultimate image quality of the Art line, the size is reduced thanks to the exclusive design for mirrorless cameras.

    High-resolution image quality developed with exclusive low dispersion glass elements and NPC (Nano Porous Coating)

    One FLD glass and five SLD glass elements are appropriately arranged to suppress chromatic aberration to the edge of the frame. Three aspherical lenses, including a large-diameter aspherical lens at the foremost surface, are used to effectively minimize coma flare, etc., thereby achieving mind-blowing resolution. The super multi-layer coating is combined with a newly developed NPC (Nano Porous Coating)*. The lens has been designed to be less susceptible to strong incident light such as backlight.

    SIGMA’s new unique coating technology "NPC (Nano Porous Coating)" incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

    Substantial functions enable user confidence, even in tough environments

    Incorporating a stepping motor enables the high speed, quiet AF drive. Shooting is comfortable even in target AF such as Face/Eye Detection AF and during video shooting. The AFL button which can be assigned with various functions widens the range of operations available on the lens. Furthermore, the lens features a dust- and splash-proof structure, along with a water- and oil-repellent coating on the frontmost surface of the lens, which further supports shooting in various environments.

    Rear filter holder as a standard accessory

    The lens comes with a rear filter holder equipped with a fall prevention lock for attaching sheet type rear filters for shooting starry skies.

    Other features

    • Full-time manual mode
    • Available Mount Conversion Service
    • Designed to minimize flare and ghosting
    • Evaluation with SIGMA’s own MTF measuring system: A1
    • 11-blade rounded diaphragm
    • High-precision, rugged brass bayonet mount
    • “Made in Japan” craftsmanship
    787 x 519 - 54K
  • Sigma 14-24mm deal with free USB dock for $1099

    https://www.adorama.com/sg1424nk.html

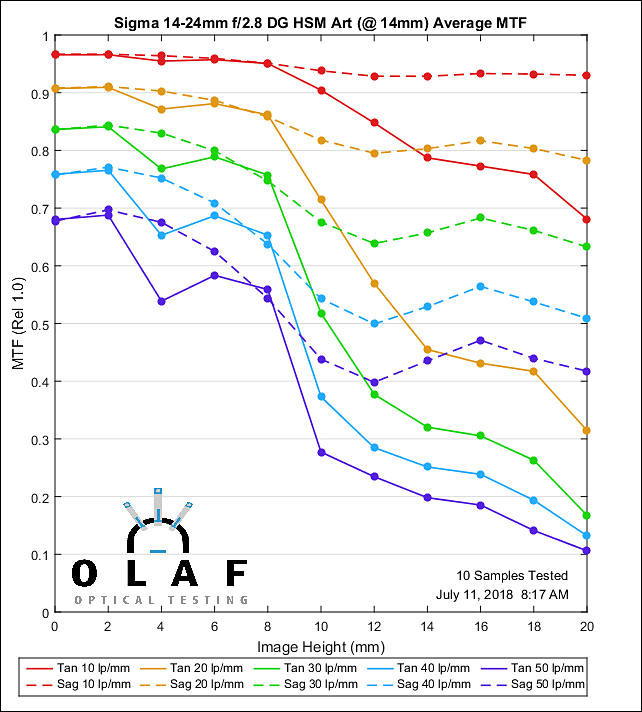

  • MTF measurements

    14mm

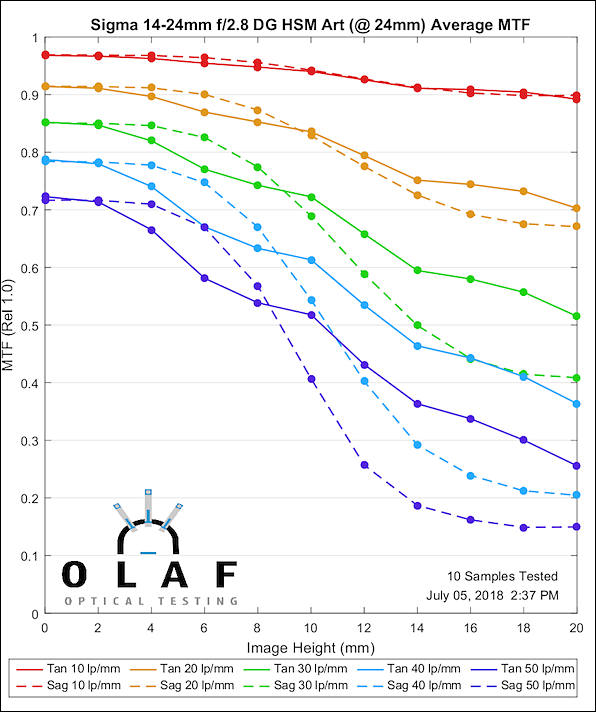

    24mm


    642 x 712 - 84K
    596 x 712 - 77K

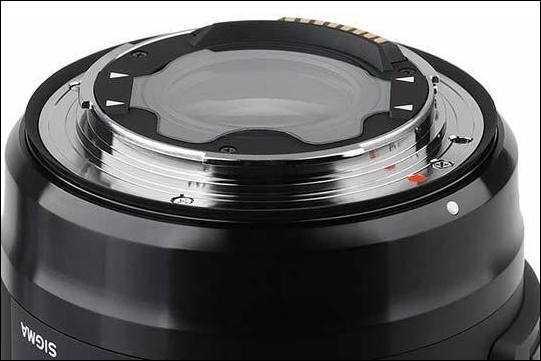

  • Rear filter holder available

    Installation service for the Rear Filter Holder FHR-11 on the SIGMA 14-24mm F2.8 DG HSM | Art for Canon


    Responding to popular demand, the SIGMA Corporation is pleased to announce that another lens is compatible with the Rear Filter Holder FHR-11.

    The chargeable installation service of the Rear Filter Holder FHR-11 for the SIGMA 14-24mm F2.8 DG HSM | Art for Canon starts from 18th May.

    The Rear Filter Holder FHR-11 is an accessory exclusively designed for the SIGMA 14-24mm F2.8 DG HSM | Art (for Canon) and the SIGMA 14mm F1.8 DG HSM | Art (for Canon). It enables photographers to use a sheet filter on the lens. By attaching the Rear Filter Holder FHR-11 to the rear of the lens, it allows more freedom for photographic expression.

    For details of the price and the commencement date of the service, please contact your nearest authorized SIGMA subsidiary/distributor.

    Furthermore, the necessary parts for the FHR-11 installation are available on the SIGMA Corporation official online shop for customers who prefer to install it by themselves. As specific tools are required, it is highly recommended to purchase the professional installing service provided by the SIGMA Corporation to avoid inconvenience and unfortunate damage to the lens.

    The Rear Filter Holder FHR-11 is available now with a Suggested Retail Price of £34.99 including VAT. The Rear Filter Holder FHR-11 and installation service by Sigma Imaging UK Ltd is £59.99 including VAT.

    PACKAGE CONTENTS

    1. Rear Filter Holder FHR-11
    2. Guide template
    3. Fixing screws (3 pieces)

    UPC Code: 0085126 934866

    • Any damage or faults caused by attaching the filter holder on your own will not be covered by the warranty. This product is exclusive to the SIGMA 14-24mm F2.8 DG HSM | Art 018 for Canon and the SIGMA 14mm F1.8 DG HSM | Art 017 for Canon. Please do not attempt to attach it to any other lenses or mounts. There is a risk that it may cause damage to the lenses and cameras.
    • Please be careful to avoid scratches to the lens or the electrical contacts when attaching the filter holder.
    • Please ensure not to drop the small fixing screws inside the lens.
    • Please ensure you remove the filter after shooting as it could scratch the rear element of the lens.
    541 x 361 - 29K
