blackmagic-cinema-camera:blackmagic-main-information-and-specifications

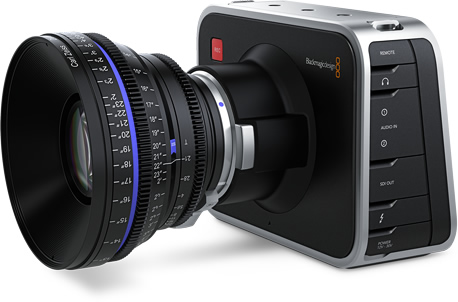

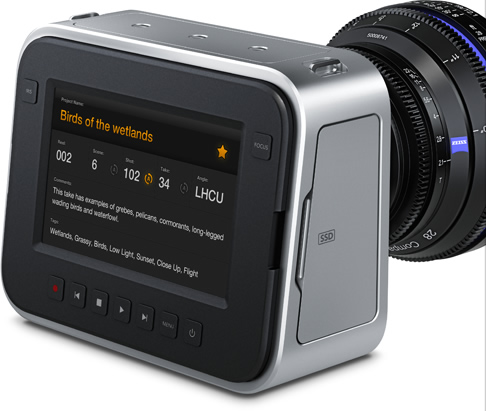

Photos

f3e9473d4c29d62c00bc5715b06e5f.jpg 06d1462be74b32ce5969967a1cd993.jpg

Specifications

Camera Features
Active Sensor Resolution 2432 x 1366
Raw Resolution 12-bit RAW files recorded at 2432 x 1366
Shooting Resolutions 2.5K RAW at 2432 x 1366. ProRes and DNxHD at 1920 x 1080
Frame Rates 23.98p, 24p, 25p, 29.97p, 30p
Active Sensor Size 15.81mm x 8.88mm
Dynamic Range 13 stops
Focus Focus button turns on peaking
Iris Control Iris button automatically adjusts the lens iris settings so no pixel is clipped
Lens Mount EF and ZE mount compatible with electronic iris control
Screen Dimensions 5” and 800 x 480 resolution
Screen Type Integrated LCD capacitive touchscreen
Metadata Support Automatic camera data and user data such as shot number, filenames and keywords
Controls Onscreen touch menus and physical buttons for recording and transport control
Microphone Integrated mono microphone
Speaker Integrated mono speaker
Mounting Options 3 x 1/4” thread mounting points on top of camera
1 x 1/4” thread tripod mount with locator pin
Power Integrated Lithium-ion Polymer rechargeable battery.
12V-30V DC port for external battery power or use included 12V AC adapter
Battery Life Approximately 90 minutes
Battery Charge Time Approximately 2 hours when not in use.
Camera Dimensions 166.2mm by 113.51mm x 126.49mm excluding detachable sunshade and turret dust cap
Camera Weight 1.7 kg / 3.75 lb
Storage Features
Storage Type Removable 2.5” SSD
Storage Format Mac OS Extended format.
SSDs can be formatted on any Mac or use Mediafour MacDrive (not included) on a Windows PC
Storage Rates 5 MB/frame in RAW 2.5K fits about 30 minutes of 24p video on a 256 GB solid state disk.
Compressed HD formats fit more than 5 times the amount of RAW video
Uncompressed Recording Formats RAW 2.5K CinemaDNG
Compressed Recording Formats Apple ProRes and Avid DNxHD.
All compressed recording in 1920×1080 10-bit YUV with choice of Film or Video Dynamic Range
Connections
SDI Video Output 1 x 10-bit HD-SDI 4:2:2 with choice of Film or Video Dynamic Range
SDI Compliance SMPTE 292M
SDI Audio Sampling 48 kHz and 24 bit.
Analog Audio Input 2 x 1/4” jacks for professional balanced analog audio, switchable between mic, line levels and digital input
Analog Audio Output 1 x 3.5mm stereo headphone output
SDI Audio Output 4 channels in HD-SDI
Remote Control 1 x 2.5mm LANC for Rec Start/Stop, Iris Control and Focus Control
Computer Interface Thunderbolt port for capture of RAW video and audio
USB 2.0 mini B port for software updates and configuration
External Power 12V-30V DC port for external battery power or use included 12V AC adapter
Software and other things
Software Included DaVinci Resolve grading software including Resolve USB dongle for Mac OS X and Windows.
Media Express software for video capture from the camera’s Thunderbolt port
Blackmagic UltraScope software for waveform monitoring from the camera’s Thunderbolt port
Accessories Detachable sun shield, camera strap, turret dust cap and 12V AC adapter
Product Warranty 12 Month Limited Manufacturer's Warranty
