Intel H310 and throttling
  • Vitaliy_KiselevVitaliy_Kiselev

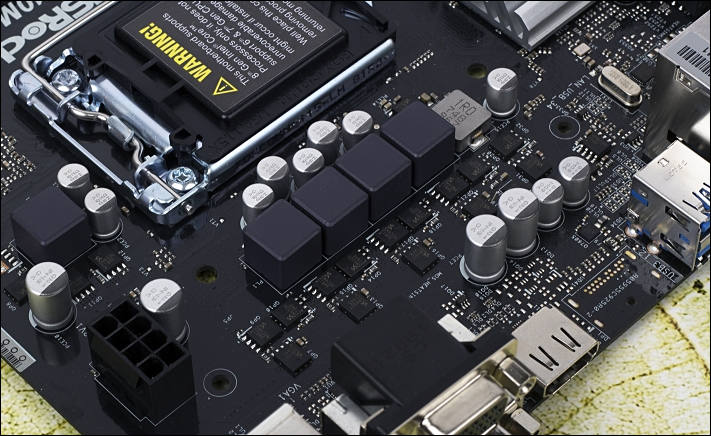

    Bare cheap 4 phase VRM, no heatsinks

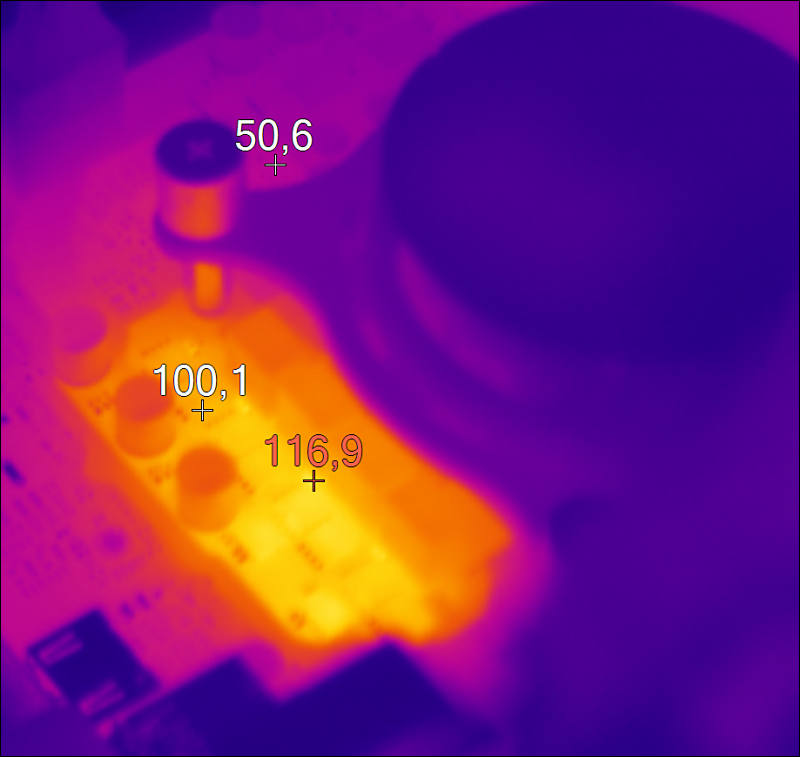

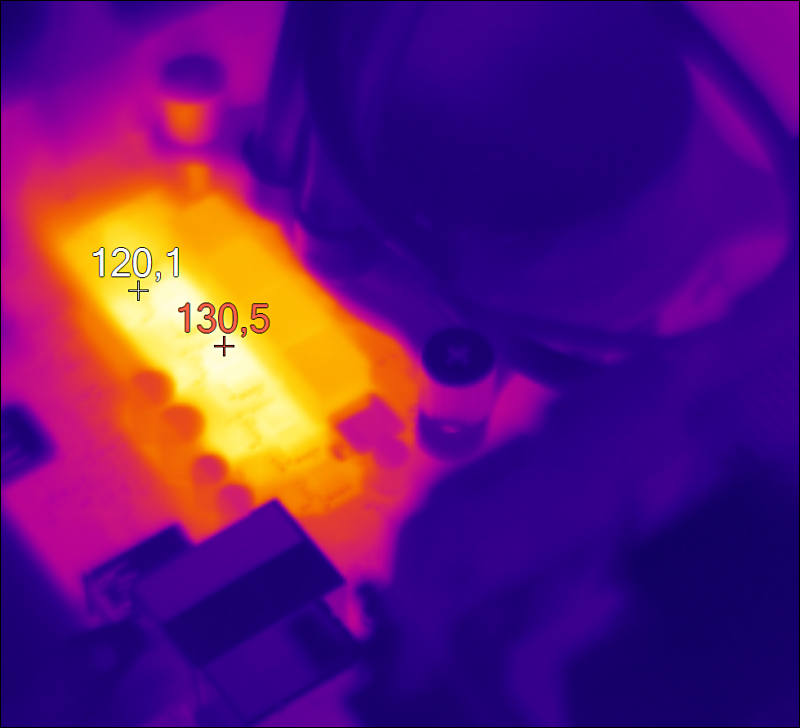

    Results with 6 core CPU under stress (note the usage of modern water cooled system)



    Big trouble and constant throttling (plus VRM won't survive this for long).

    Use good standard heatsink and put some glued small heatsings on VRM at least.

    800 x 757 - 47K
    711 x 436 - 79K
    800 x 728 - 45K
