CAME-TV Boltzen B-30 and F-55w small led fresnels
    • 30W LED emitter
    • Compact
    • Daylight temperature (5600K)
    • 96 CRI for accurate color
    • Stepless dimming control
    • Use Sony NP-F type batteries, up to 1.5 hours. Can use external 12V DC.
    • Metal housing. Fanless design.
    • 2.4GHz wireless control
    • $258 price
  • 37 Replies sorted by

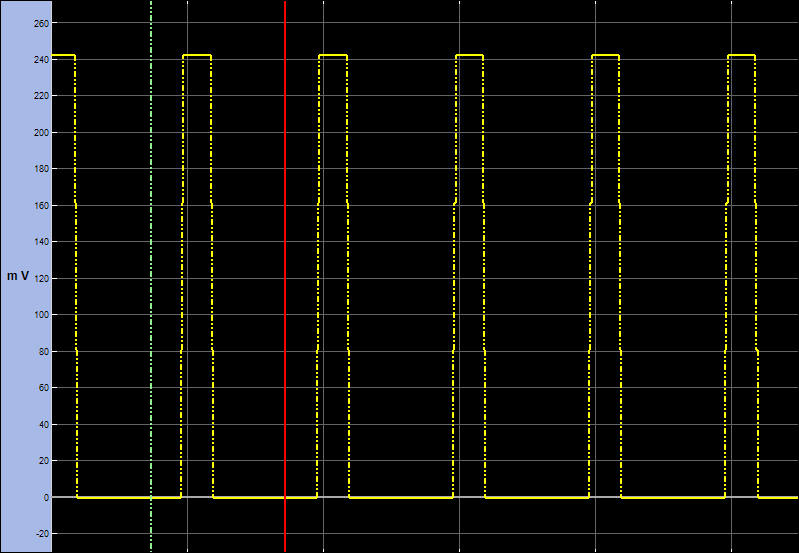

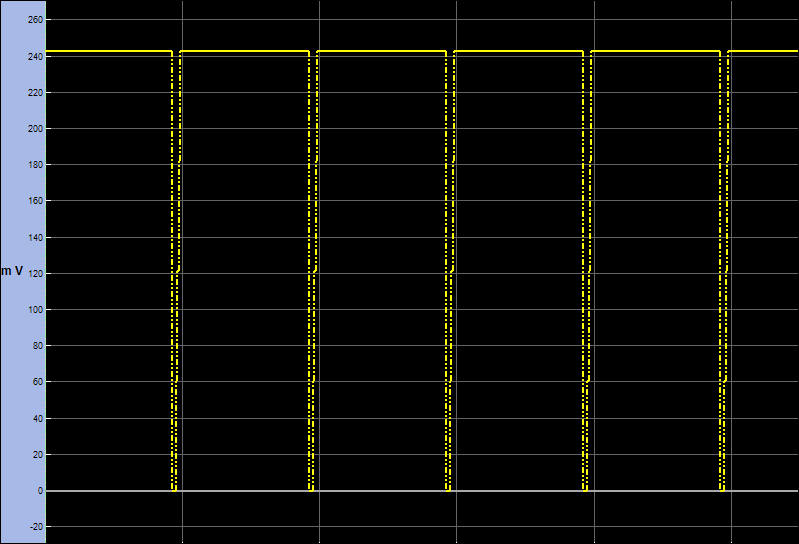

  • PWM Measurement (it is same results for B-30 and B-50)

    At minimum 20% brightness setting PWM frequency is 19.6Khz duty is 20%


    At maximum 100% brightness setting PWM frequency is 19.6Khz duty is 98%


    799 x 553 - 77K
    799 x 544 - 66K
  • Very good Thanks for test. I will make same questions about 55 bicolor light under video on YT if you could know the answers do not hesitate :)

  • CAME F-55S (Bi color, tungsten setting), measurement using Lisun, Russian Lab processing

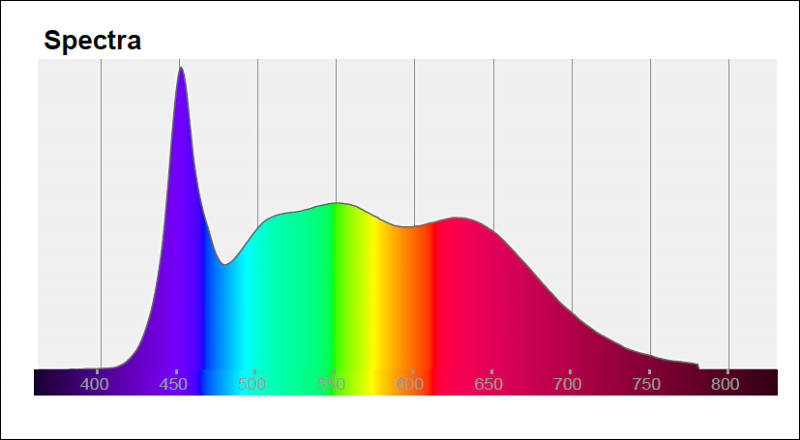

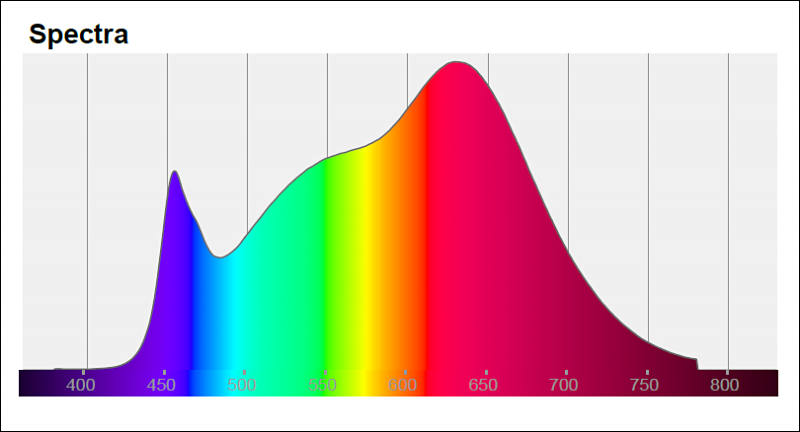

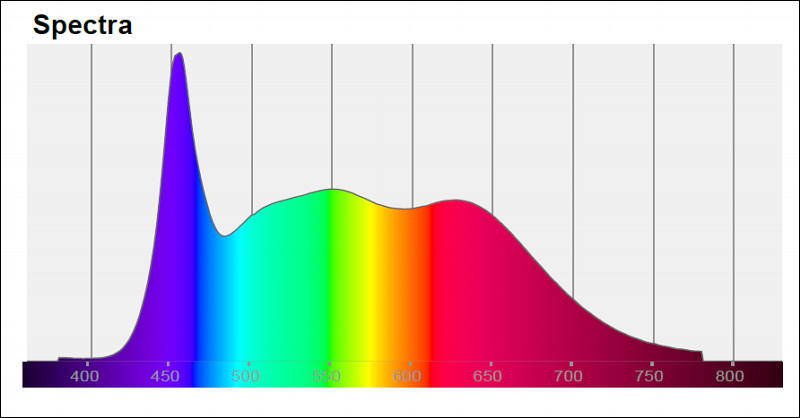

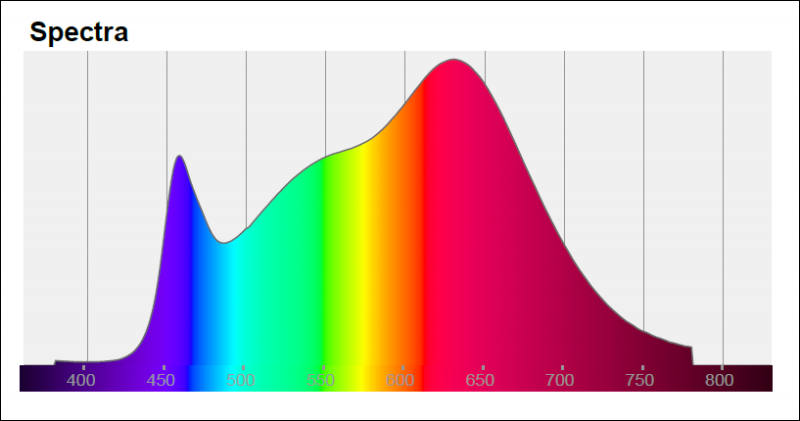

    We cover spectrum, color temperature, and all modern color quality standards, including latest 2016 and 2017 years ones.

    Never select light based on just CRI number.

    Focus on TM30 and CIE 244 and look for color distortion and Rf values.

    CAME F-55S is good light with proper color temperature, light quality is very good and suitable for videos.

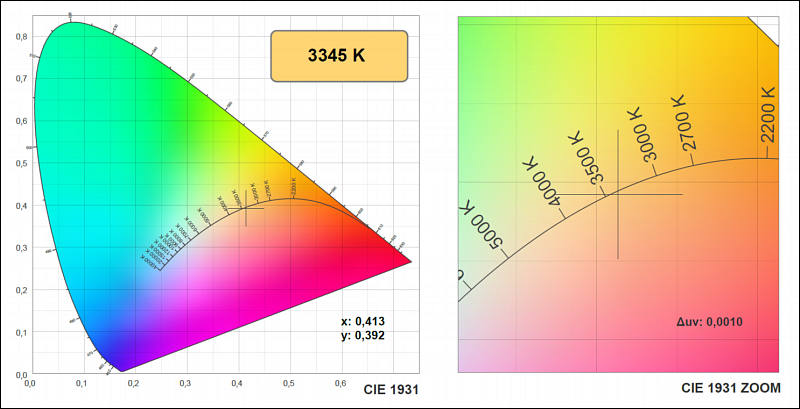

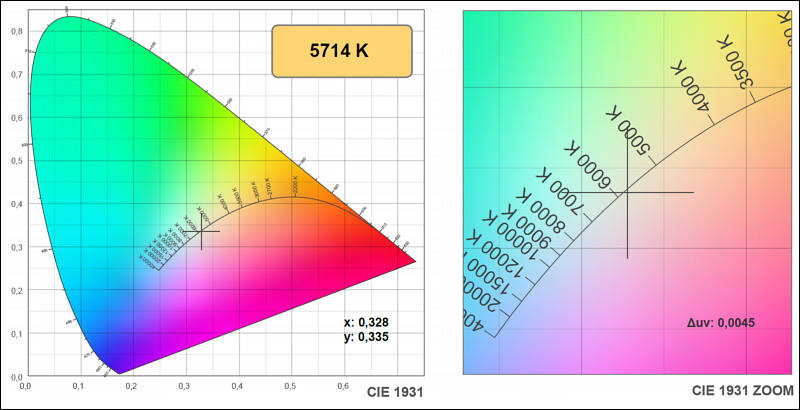

    Color temperature

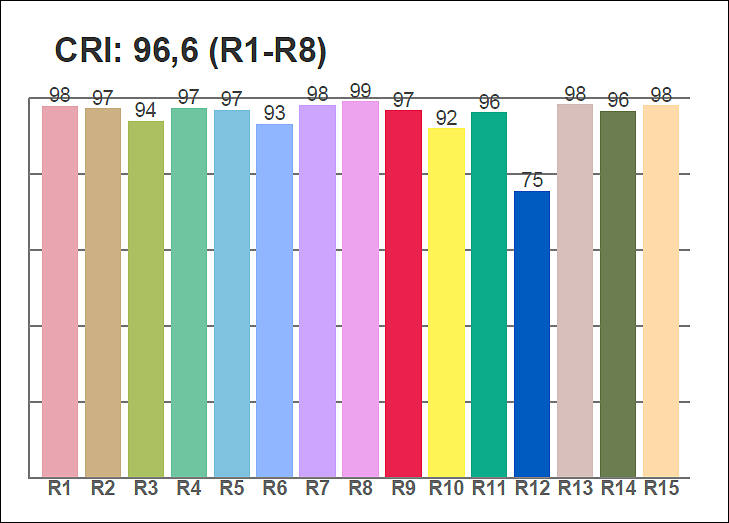

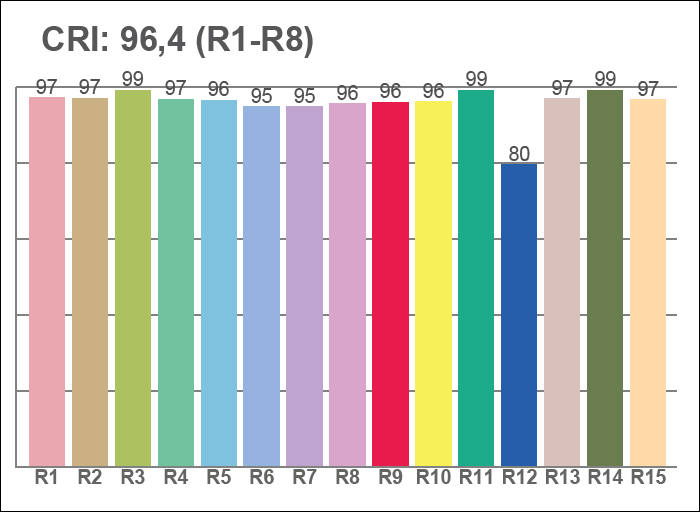

    CRI color quality

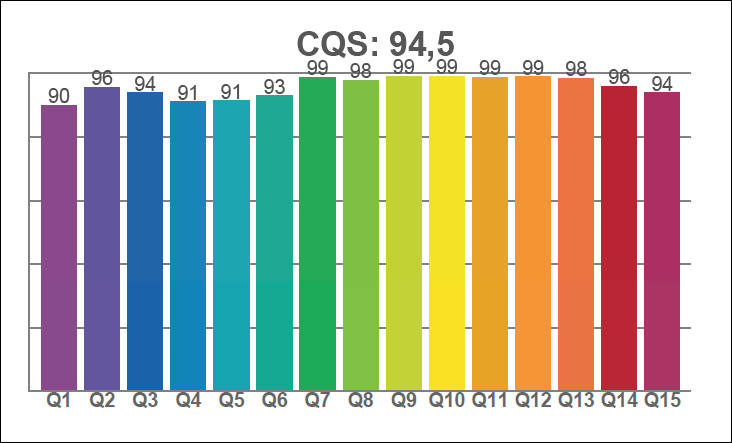

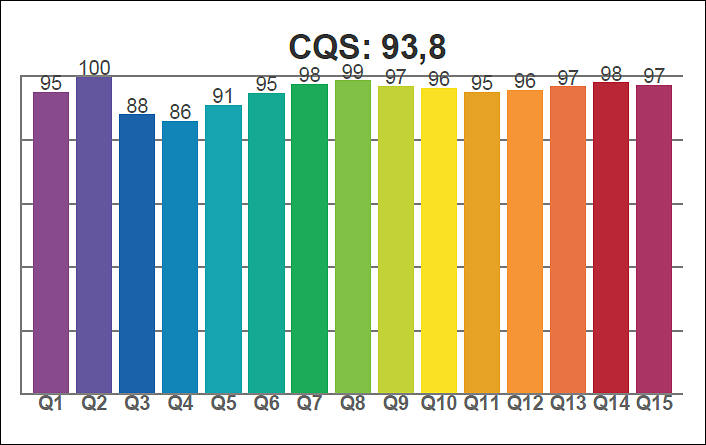

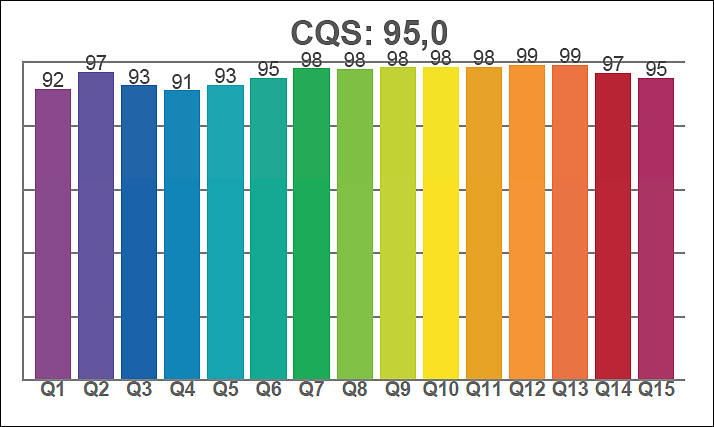

    CQS color quality

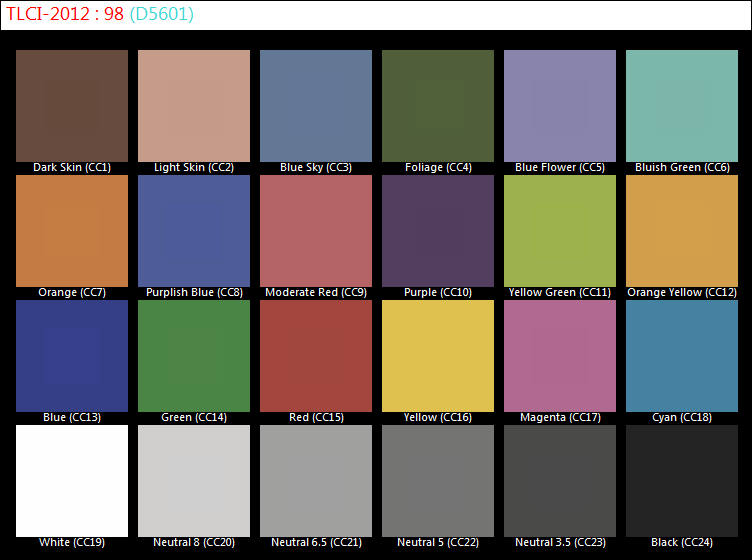

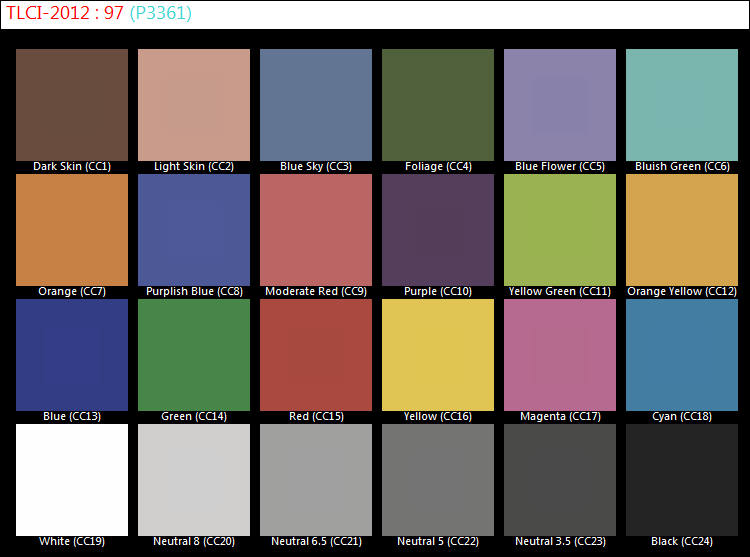

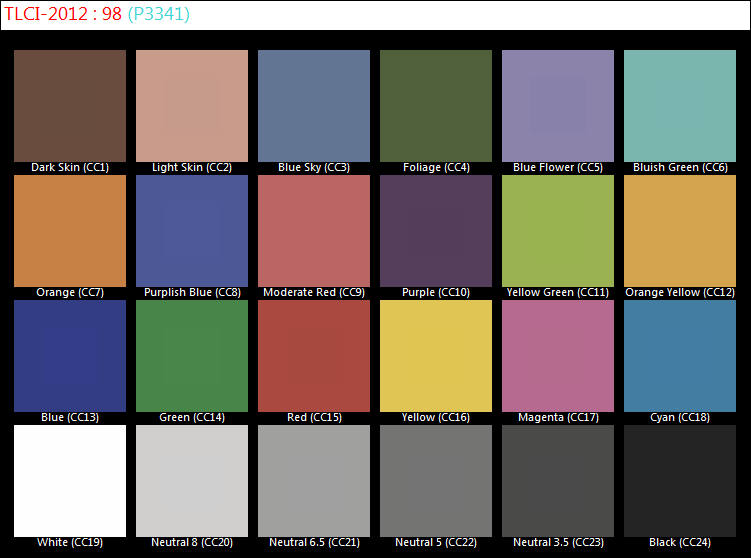

    TLCI 2012

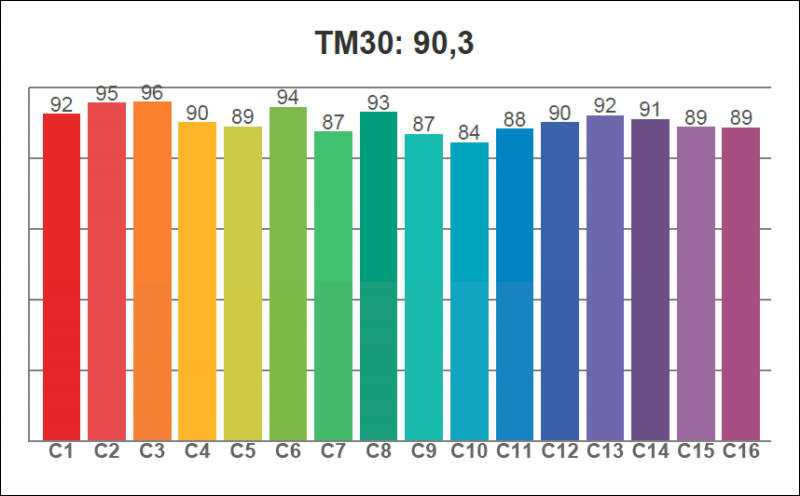

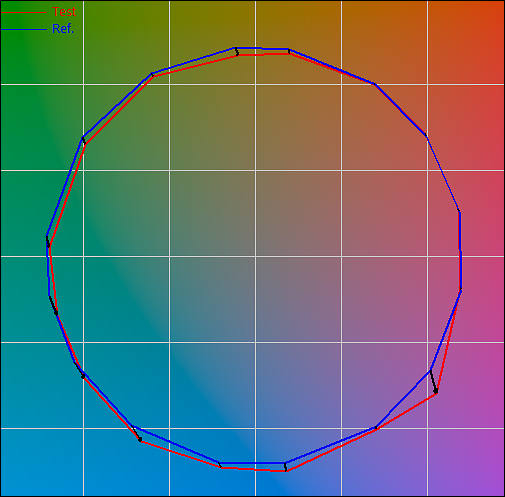

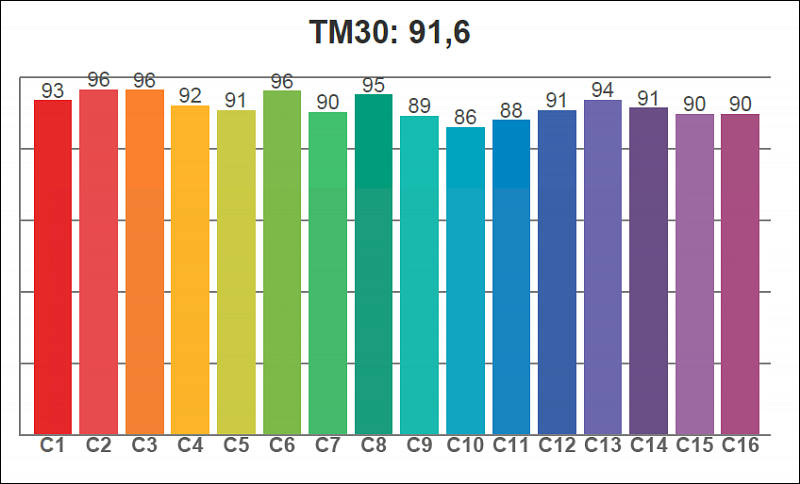

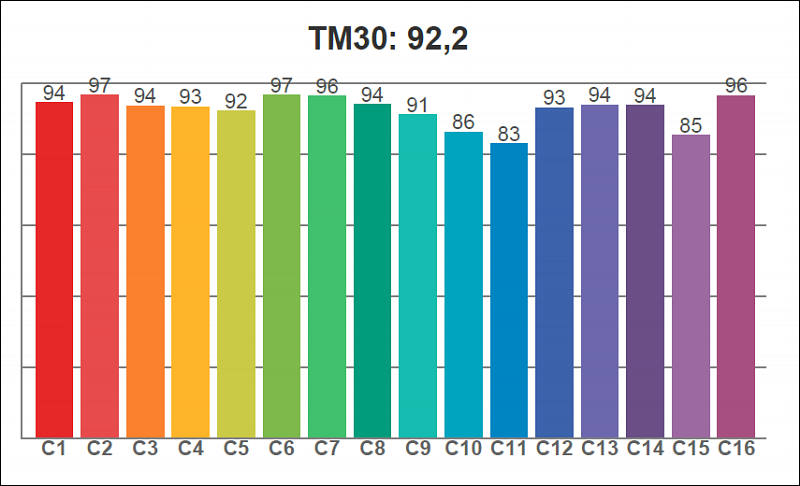

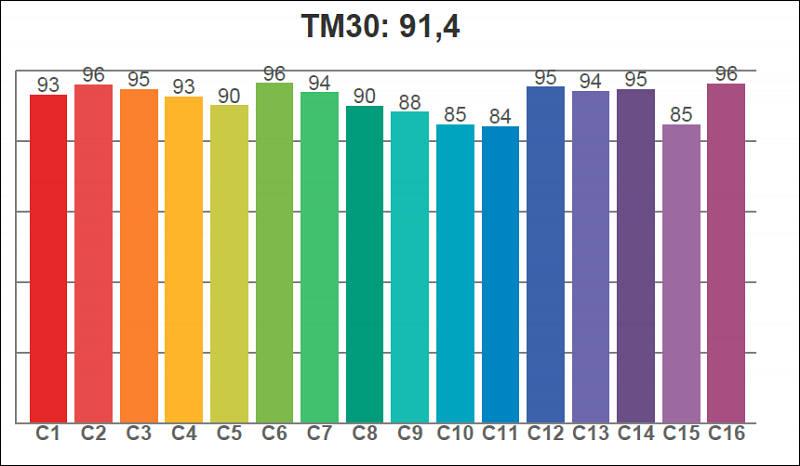

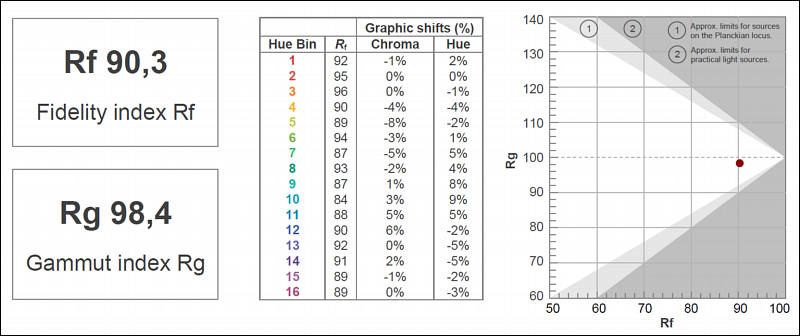

    TM30 color quality

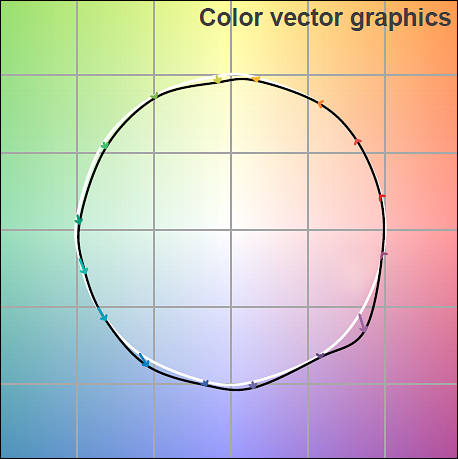

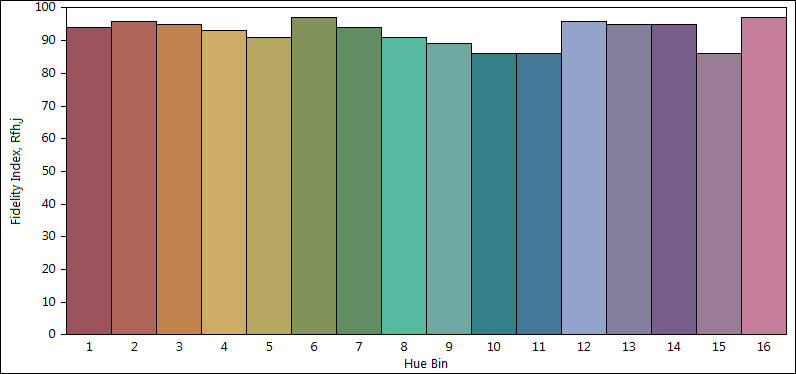

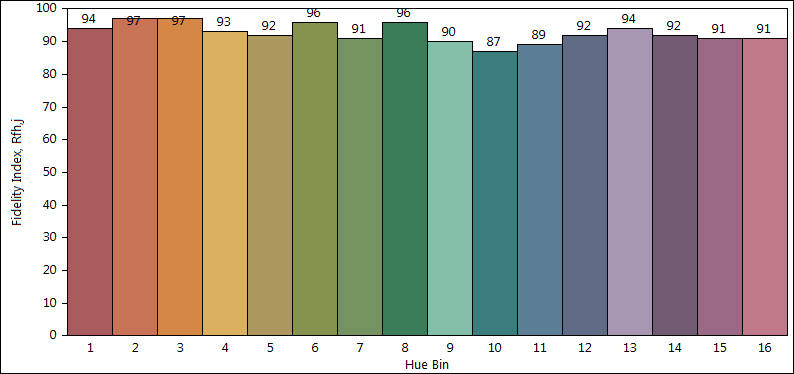

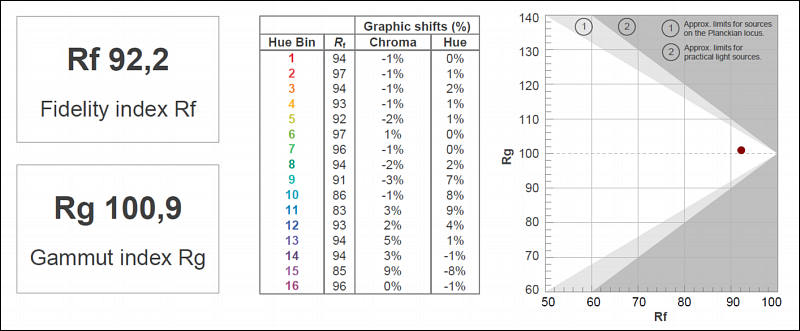

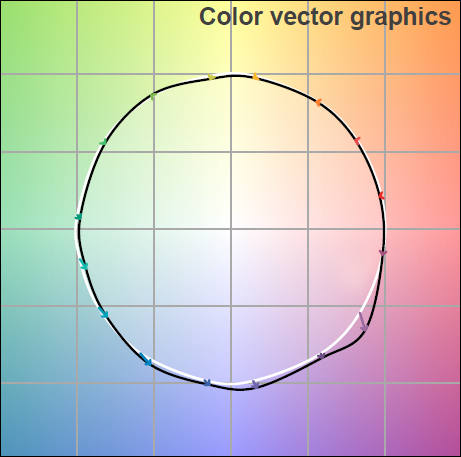

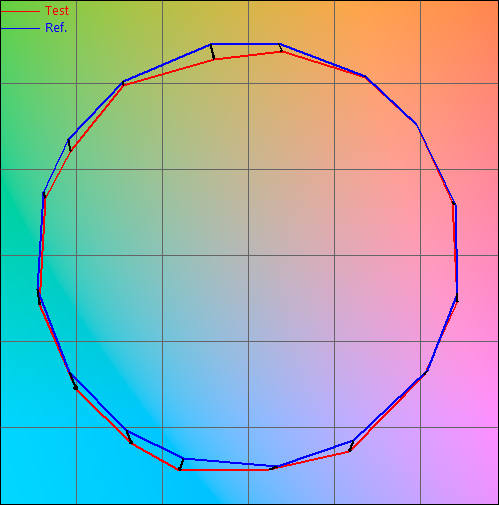

    TM30 details

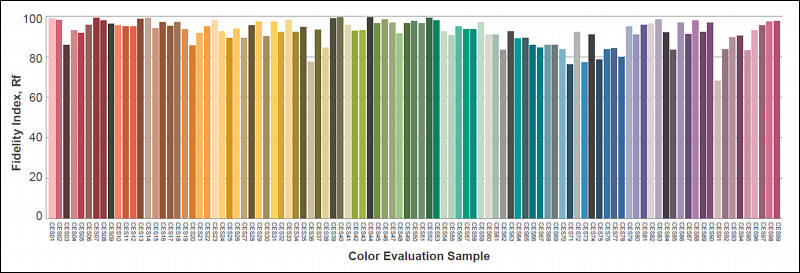

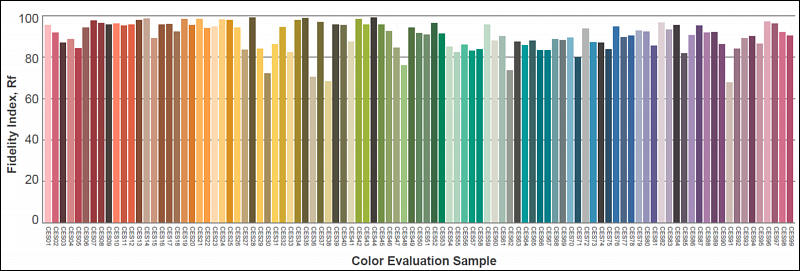

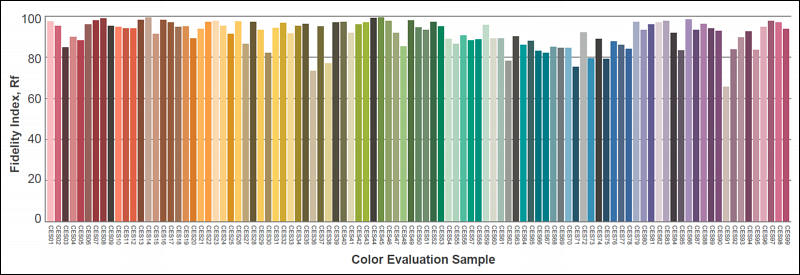

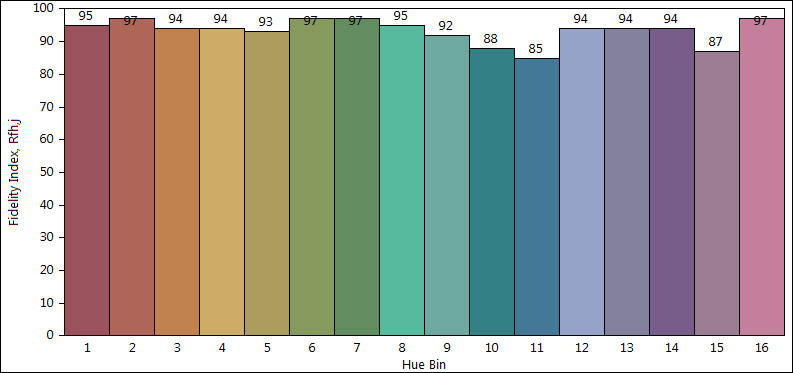

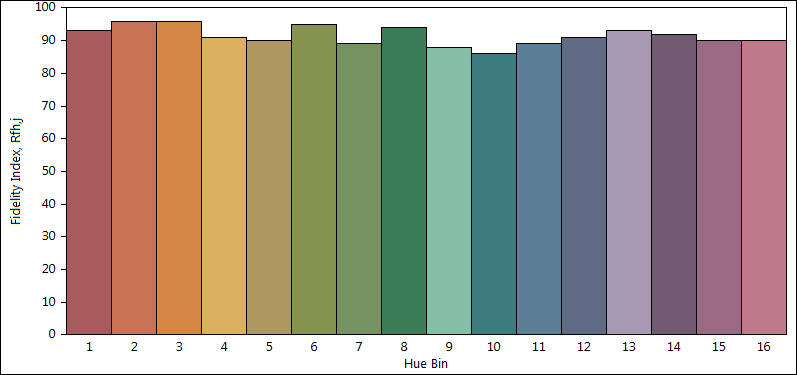

    All TM30 color samples Rf values

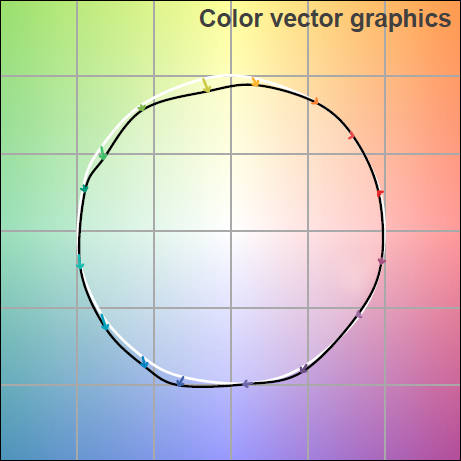

    CIE 244 2017 (Rf = 93)



    800 x 432 - 34K
    720 x 511 - 55K
    714 x 427 - 57K
    800 x 484 - 61K
    800 x 332 - 47K
    459 x 456 - 30K
    800 x 268 - 69K
    751 x 558 - 57K
    499 x 505 - 43K
    794 x 374 - 42K
    800 x 432 - 34K
    800 x 409 - 51K
  • CAME F-55S (Bi color, daylight setting), measurement using Lisun, Russian Lab processing

    We cover spectrum, color temperature, and all modern color quality standards, including latest 2016 and 2017 years ones.

    Never select light based on just CRI number.

    Focus on TM30 and CIE 244 and look for color distortion and Rf values.

    CAME F-55S is good light with proper color temperature, light quality is very good and suitable for videos.

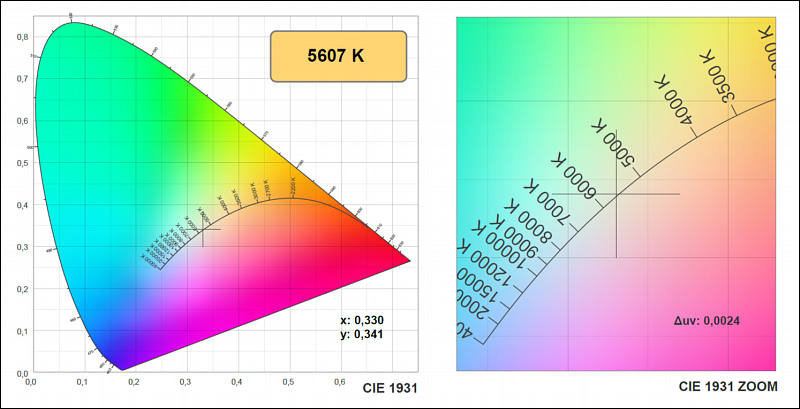

    Color temperature

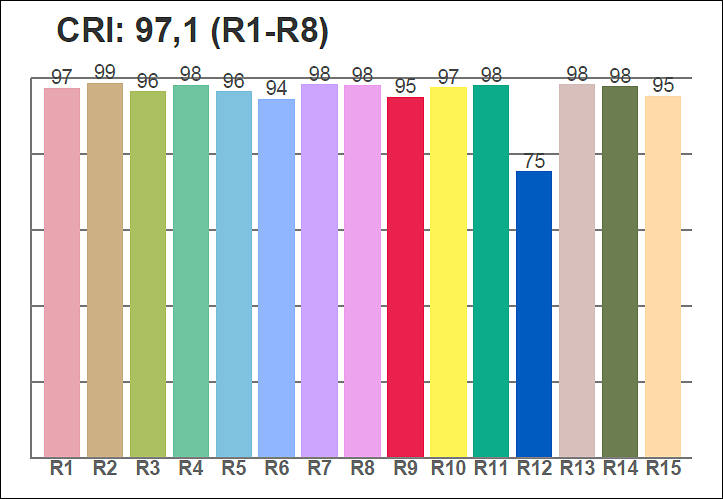

    CRI color quality


    CQS color quality


    TLCI 2012

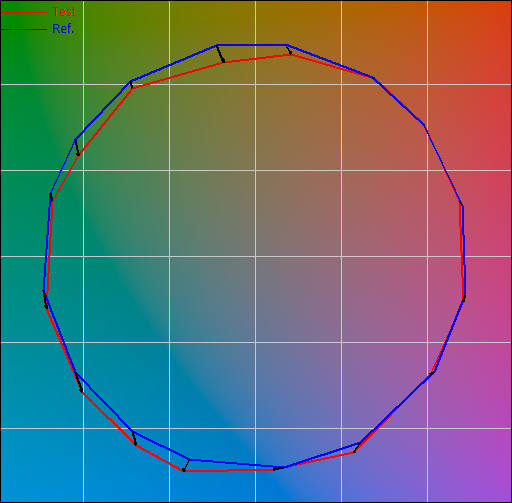

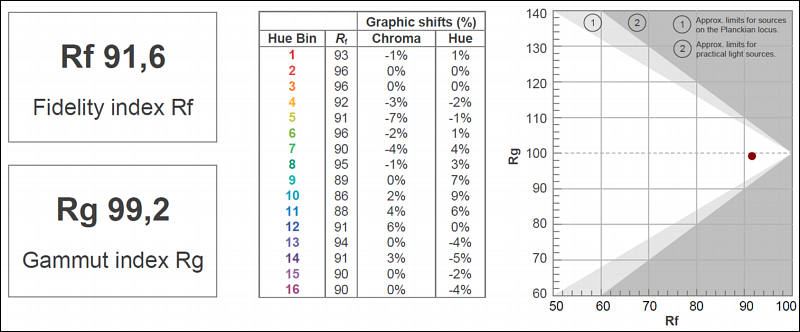

    TM30 color quality

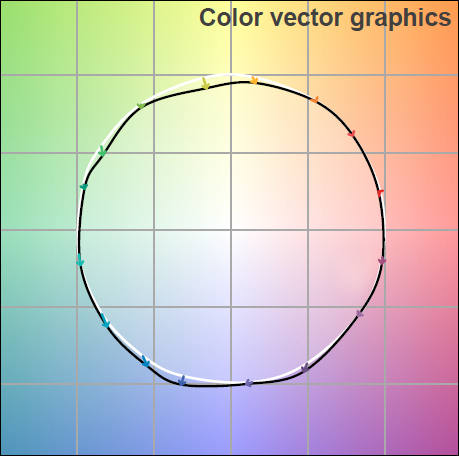

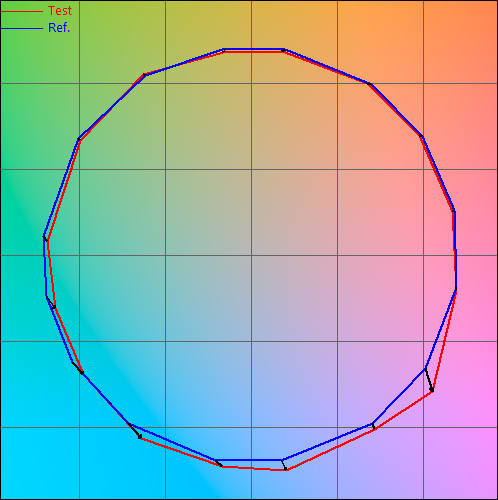

    TM30 details

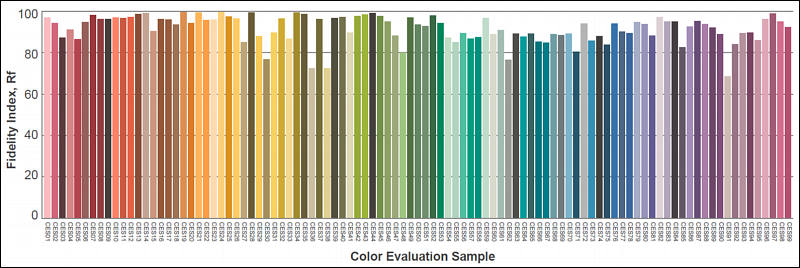

    All TM30 color samples Rf values


    CIE 244 2017 (Rf = 93)



    800 x 440 - 32K
    800 x 409 - 53K
    729 x 523 - 61K
    760 x 471 - 61K
    752 x 560 - 57K
    800 x 486 - 62K
    800 x 331 - 46K
    800 x 273 - 64K
    498 x 500 - 44K
    793 x 373 - 41K
    461 x 457 - 29K
  • CAME-TV Bi-Color Boltzen 55W Led Fresnel Light

  • CAME F-55W (tungsten version), NAB 2017 measurement using CV600, Russian Lab processing

    We cover spectrum, color temperature, and all modern color quality standards, including latest 2016 and 2017 years ones.

    Never select light based on just CRI number.

    Focus on TM30 and CIE 244 and look for color distortion and Rf values.

    CAME F-55W is good light with proper color temperature, light quality is good and suitable for videos.


    Color temperature


    CRI color quality


    CQS color quality


    TLCI 2012


    TM30 color quality


    TM30 details



    All TM30 color samples Rf values


    CIE 244 2017 (Rf = 91)



    800 x 421 - 31K
    800 x 404 - 49K
    700 x 512 - 53K
    732 x 443 - 52K
    750 x 557 - 56K
    800 x 496 - 54K
    800 x 336 - 46K
    461 x 461 - 29K
    800 x 271 - 68K
    797 x 375 - 36K
    512 x 503 - 41K
  • CAME F-55W (daylight version), NAB 2017 measurement using CV600, Russian Lab processing

    We cover spectrum, color temperature, and all modern color quality standards, including latest 2016 and 2017 years ones.

    Never select light based on just CRI number.

    Focus on TM30 and CIE 244 and look for color distortion and Rf values.

    CAME F-55W is good light with proper color temperature, light quality is very good and suitable for videos.


    Color temperature


    CRI color quality


    CQS color quality


    TLCI 2012


    TM30 color quality


    TM30 details



    All TM30 color samples Rf values


    CIE 244 2017 (Rf = 92)



    800 x 418 - 33K
    800 x 410 - 57K
    723 x 499 - 60K
    706 x 445 - 57K
    752 x 557 - 61K
    800 x 466 - 60K
    800 x 330 - 46K
    458 x 459 - 32K
    800 x 275 - 66K
    796 x 374 - 37K
    505 x 497 - 41K
  • will do

  • @konjow

    I suggest to make separate topic. As we try to maintain order here.

    But it is interesting find, if you ask me I'll prefer this design to CAME cheap one.

  • While waiting for came upgrade I found this and is very tempting. Cant find any additional info tests unfortunately yet https://www.aliexpress.com/item/Portable-High-CIR-Bi-color-80W-LED-Spotlight-for-Camera-Video-Continuous-Light-3200K-5600K-Dimmable/32808223517.html?spm=2114.10010108.1000023.22.FjPdsU

    I know its came tread but cant find any recent for led fresnel and or battery ones

  • @konjow

    I agree with you.

    Actually it is enough to just check DC report to understand that you need two Sony batteries mounts for such thing.

    Like on this thing http://www.personal-view.com/talks/discussion/16562/fotodiox-popspot-focusable-fresnel-led-

  • I want to get set of them. Considering Im waiting good fow years for reasonable price/quality for fresnel led, I have feeling it is worth wait bit more for upgraded version. Especially Came needs few versions to get it right.

  • @konjow

    Sorry for delays, first test items are always hard.

  • "We'll publish our own measurements soon" can't wait.

  • Very interesting videos.

  • PV Lab report, Part 4, Thermal Test 2

  • PV Lab report, Part 4, Thermal Test 1

  • Hi guys how do this compare with regular tungsten bulbs light. 55watt is equivalente to 500W or 650W? And de 30watt is equivalent to 250W or 350W?

    You want to compare without understanding.

    Check http://www.personal-view.com/faqs/laboratory/measuring-lights-faq

    For any real task you want to compare illuminance.

    And bare bulbs are not normally used in shooting, except the similar rare case of inside chinese lanterns.

    Does it have any green magenta cast?

    I'll post extremely detailed answer to this, just wait a little. :-)

  • Hi guys how do this compare with regular tungsten bulbs light. 55watt is equivalente to 500W or 650W? And de 30watt is equivalent to 250W or 350W?

    Does it have any green magenta cast?

    Thanks

  • PV Lab report, Part 3, DC Consumption of 55W Boltzen Led Fresnel

    Sony NP battery

    • 100% brightness consumption at 7.40v is 50,54 watt (6.84A)
    • 50% brightness consumption is 26,9 watt
    • 10% brightness consumption is 6,7 watt
    • minimum brightness consumption is 3,92 watt
    • minimal battery voltage that keep same 100% brightness - around 6.5v
    • cutoff battery voltage - around 5.5v
    • remember to remove battery between shoots, as it can drain battery even in off state!

    For reference

    • NP-F970 battery is rated 7900Mah at 7.4v, 58,5Wh
    • NP-F770 battery is rated 5000Mah at 7.4v, 37,0Wh
    • NP-F550 battery is rated 2900Mah at 7.4v, 21,5Wh

    So, it is good idea to use F970.

    Large batteries connector

    • 100% brightness consumption at 14.53v is 48,4 watt (3.3A)
    • cutoff voltage is same 5.5v
    • minimal battery voltage that keep same 100% brightness - around 8.3v
    • while it has 7.5v written it can start with flicker on such voltage
    • use proper batteries with at least 12v voltage for this connection
  • PV Lab report, Part 2, DC Consumption of 30W Boltzen Led Fresnel

    Sony NP battery

    • 100% brightness consumption at 7.40v is 31,4 watt (4.24A)
    • 50% brightness consumption is 16,6 watt
    • 10% brightness consumption is 6,8 watt
    • minimum brightness consumption is 3,42 watt
    • minimal battery voltage that keep same 100% brightness - around 6.3v
    • cutoff battery voltage - around 5.5v
    • remember to remove battery between shoots, as it can drain battery even in off state!

    For reference

    • NP-F970 battery is rated 7900Mah at 7.4v, 58,5Wh
    • NP-F770 battery is rated 5000Mah at 7.4v, 37,0Wh
    • NP-F550 battery is rated 2900Mah at 7.4v, 21,5Wh

    So, it is good idea to use F970.

    Large batteries connector

    • 100% brightness consumption at 14.50v is 31,2 watt (2.15A)
    • cutoff voltage is same 5.5v
    • minimal battery voltage that keep same 100% brightness - around 8.3v
    • while it has 7.5v written it can start with flicker on such voltage
    • use proper batteries with at least 12v voltage for this connection
  • @Aria

    I was thinking about perhaps modifying the Bracket with Arri Rosettes to keep things in place. It's just an idea for now but maybe someone can look into that or suggest it to CAME-TV.

    They already made this up, but it is not included by default


    http://v.youku.com/v_show/id_XMjExMTEwOTc2OA==.html
