Monitors and viewfinders http://www.personal-view.com/talks/categories/monitors-viewfinders/p2/feed.rss Sun, 12 May 24 23:56:11 +0000 Monitors and viewfinders en-CA Feelworld LUT7 2200nits High Brigness Monitor http://www.personal-view.com/talks/discussion/22557/feelworld-lut7-2200nits-high-brigness-monitor Wed, 11 Sep 2019 08:18:58 +0000 Vitaliy_Kiselev 22557@/talks/discussions

]]>
SWIT CURVE500 wireless transmisson system http://www.personal-view.com/talks/discussion/23779/swit-curve500-wireless-transmisson-system Sun, 19 Apr 2020 08:28:16 +0000 MikeLinn 23779@/talks/discussions

]]>
BenQ SW321C Monitor http://www.personal-view.com/talks/discussion/23684/benq-sw321c-monitor Sun, 22 Mar 2020 17:35:05 +0000 Vitaliy_Kiselev 23684@/talks/discussions image

Specs

  • 4K (3840 x 2160) with IPS Technology and 99% Adobe RGB colour space, 100% sRGB/Rec. 709 and 95% of DCI-P3/Display P3.
  • Paper Colour Sync Technology that simulates your screen to show what you will see on paper.
  • Colour reproduction from a 16-bit lookup table (LUT) that improves RGB blending accuracy.
  • A sharp and a true-to-life representation with the Delta E ≤ 2 in Adobe RGB and sRGB colour space renders.
  • BenQ Uniformity Technology that fine-tunes the colour and brightness at hundreds of sub-regions for screen-wide colour accuracy.
  • Consistent and accurate colour with built-in hardware calibration that allows you to adjust the monitor’s internal image processing chip without changing the graphics card output data.
  • Preview the HDR effect during post with HDR10 and HLG formats and video format that supports 24P/25P film content to be displayed at native cadence without pulldown to prevent playback distortion of the source video.
  • Detachable shading hood to reduce glare from ambient lighting.
  • Supports the world-leading video calibration software CalMAN and LightSpace to adjust the display’s 3D LUT and support third party video calibration software.
]]>
Blackmagic 12G HDR Video Assist http://www.personal-view.com/talks/discussion/22638/blackmagic-12g-hdr-video-assist Mon, 23 Sep 2019 13:23:31 +0000 Vitaliy_Kiselev 22638@/talks/discussions

]]>
X-Rite i1Photo Pro 3 Plus Spectrometer http://www.personal-view.com/talks/discussion/22427/x-rite-i1photo-pro-3-plus-spectrometer Fri, 16 Aug 2019 02:52:18 +0000 Vitaliy_Kiselev 22427@/talks/discussions

The new i1Photo Pro 3 Plus from X-Rite is an ultra-precise spectral colour measurement solution that is optimised for Colour Perfectionists who print digitally on a wide range of specialised materials and surfaces.


X-Rite Incorporated, the global leader in colour science and technology, is now shipping the new i1Photo Pro 3 Plus, a spectral colour measurement solution specifically designed for professional photographers who print on challenging textured and glossy photo media looking for the most accurate colour in their RGB print workflows. i1Photo Pro 3 Plus combines the new i1Pro 3 Plus spectrophotometer and i1Profiler software to deliver the ultimate professional-level colour management for displays, projectors, scanners, RGB printers and cameras.

Current profiling solutions are limited in their ability to measure textured, rough, or uneven surfaces and cannot accommodate various material thicknesses. Many devices do not have the resolution required to ensure the highest colour quality when printing detailed patterns, metallic effects, or photography images. This leads to costly colour errors and rework, which impacts a photographer’s bottom line.

“The i1Photo Pro3 Plus builds on the success of the i1 Family and removes the variability to create accurate ICC profiles on a broader range of photographic materials,” said Liz Quinlisk, Photo and Video Business Unit Manager, X-Rite. “Photographers will see the immediate value by incorporating the i1Photo Pro 3 Plus into their RGB print workflow, resulting in more accurate, repeatable colour and improved shadow detail, as well as a reduction of waste and an increased return on investment.”

New in the i1Pro3 Plus spectrophotometer:

  • Larger 8mm aperture supports new materials and substrates used in digital printing.
  • Polarisation Filter (measurement condition M3) that reduces specular highlights and shadows to provide “better blacks” and richer colours on rough surfaces and glossy media, like canvas prints and fine art photo papers.
  • High Brightness Measurement up to 5K NITs for ultra-bright displays.
  • Simultaneously measure M0, M1 and M2 in a single pass to account for optical brighteners so photographers can quickly predict how colours printed on optically brightened substrates will look under different lighting conditions.
  • New LED illuminant that improves device reliability. The i1Pro3 Plus allows for four measurement conditions (ISO 13655 M0; M1: D50; M2: UV Excluded, M3Polarised).
  • Transmission scanning support for backlit materials.
  • Longer scanning ruler to support wider charts.

“We are used to seeing bumpy shadow measurements from unpolarised devices on glossy textured media like canvas. With the new polarisation feature in the i1Pro 3 Plus, our M3 measurements are dramatically smoother in the shadows - perfect in fact,” commented Scott Martin, Founder, Onsight, a leading workflow consultant for print, prepress, design and photography.

New X-Rite iO Table

In addition, X-Rite announces a new i1iO Automated Scanning Table that supports the i1Pro 3 Plus hardware. This hands-free test chart reader offers automated colour profiling on a variety of substrates with reduced risk of colour measurement errors. It is ideal for colour perfectionists who want to speed up and automate the measurement process and eliminate manual strip reading. The new i1iO table can be used with a variety of materials including canvas, textiles, ceramics, corrugated, etc. and supports materials up to 33mm thick, with the optional z-axis spacer. It also supports transparencies and backlit materials.

Additional i1Pro 3 Plus Solutions

In addition to i1Photo Pro 3 Plus, X-Rite is now shipping these new i1Pro 3 Plus solutions:

  • i1Basic Pro 3 Plus – includes monitor calibration and quality control for monitors and printers
  • i1Publish Pro 3 Plus – includes CMYK+ printer module and all features of i1Photo Pro 3 Plus
]]>
Asus ProArt 32UCX VS Apple Pro Display XDR http://www.personal-view.com/talks/discussion/23242/asus-proart-32ucx-vs-apple-pro-display-xdr Fri, 13 Dec 2019 07:48:11 +0000 jonpais 23242@/talks/discussions While awaiting delivery of my Asus PA32UCX-K this afternoon, I thought I’d compare a few of the features and specs of the two displays, bearing in mind that the XDR has not yet been tested.

The XDR boasts 6K, while the Asus is a 4K monitor; however, only the 2019 Mac Pro and 16-inch MacBook Pro can run the XDR at full 6K resolution. Both the Asus and the Apple are true 10-bit displays.

Apple claims 500 nits for their display in SDR mode and 1,000 nits sustained and 1,600 nits peak brightness in HDR mode. The Asus can deliver anywhere from 620-656 nits in SDR and from 1,400-1,534 nits maximum brightness in HDR, depending on which reviewer you read.

The Pro Display XDR has 576 local dimming zones, whereas the Asus has 1,152.

On his YouTube channel, Marques Brownlee says his Pro Display XDR is virtually silent, while the Asus is supposed to get quite noisy.

According to Asus, the maximum viewing angle of the PA32UCX-K is 178 degrees in the horizontal and vertical (Apple claims 180 degree viewing angle for the XDR), and according to tests, hue, saturation, brightness, contrast and color temperature remain virtually unchanged even at extreme viewing angles. I expect Apple’s display will be no slouch in this department either.

As far as connectivity goes, Apple’s monitor has one TB3 port and three USB-C ports. The Asus comes with dual TB3 ports, one DisplayPort and three HDMI 2.0 ports.

The Apple Pro Display XDR runs $6,500 in the USA when purchased with stand and AppleCare+. Throw in the nano-texture glass option and that figure skyrockets to $7,500.00. In Vietnam, the ProArt 32UCX-K costs half as much ($3,300.00) and comes with stand, a three-year warranty and an X-Rite i1 Display Pro colorimeter (value $250.00 in USA, $325 in VN). With the Asus, you will however have to factor in another grand for Blackmagic’s UltraStudio 4K Mini. Ouch!

]]>

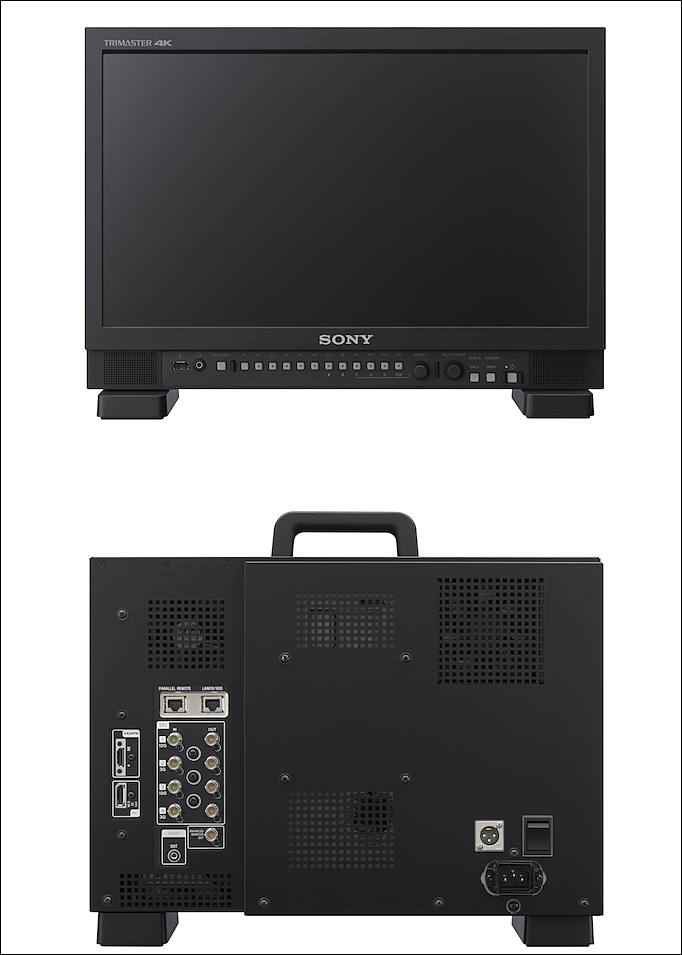

Sony PVM-X2400 and PVM-X1800 master monitors http://www.personal-view.com/talks/discussion/23481/sony-pvm-x2400-and-pvm-x1800-master-monitors Sat, 01 Feb 2020 22:24:22 +0000 Vitaliy_Kiselev 23481@/talks/discussions image

Sony will launch a new set of high-grade picture monitors from its TRIMASTER range at this year's BSC Expo in London. Both the 24'' and 18.4'' models will be showcased on stand 515, alongside other flagship solutions from Sony.

The PVM-X2400 (24'') and the PVM-X1800 (18.4'') monitors provide high picture quality and accurate colour reproduction thanks to Sony's specified and dedicated panels, which offer ultra-high definition with a resolution of 3840 x 2160 pixels and an impressive brightness of all-white luminance of 1000 cd/m2. For optimum film production, their wide colour gamut matches the industry-leading BVM-HX310 TRIMASTER HX master monitor. This means both monitors offer accurate colour reproduction and precise greyscale, giving filmmakers a reliable tool to help make critical imaging decisions and faithful colour matching throughout the workflow. With its compact size and high portability, the monitors are aimed to expand footprints in 4K HDR production including versatile applications such as on-set monitoring, non-linear video editing, studio wall monitoring, rack-mount monitoring of OB trucks or machine rooms.

The monitors also feature new Black Detail High/Mid/Low, which helps maintain accurate colour reproduction by reducing the brightness of the backlight in three steps to reproduce the correct colours and gradations in low-luminance areas. Another new function, Dynamic Contrast Drive, dynamically changes backlight luminance to adapt to each scene or frame when transferring images from PVM-X2400/X1800 to existing Sony OLED monitors. This functionality allows filmmakers to check the highlight and low light balance of the contents with both bright and dark scenes.

"We are excited to return to BSC this year and launch our two new picture monitors at the show. At Sony, we always work closely with our partners, customers and the wider industry to offer solutions that help filmmakers overcome the real-life production challenges they face on set or in the editing room. Through the launch of these new monitors, Sony is now able to offer its customers an even wider range of compact 4K HDR monitors that provide reliable and faithful colour matching from start to finish," explained Daniel Dubreuil, Senior Product Manager at Sony Professional Solutions Europe.

Key features of the new reference monitors include:

  • TRIMASTER technology offering precise greyscale and accurate colour reproduction, achieving 100% colour gamut coverage of the industry-leading BVM-HX310 master monitor
  • 4K resolution of 3840 x 2160 pixels and HDR capabilities
  • New Black Detail High/Mid/Low toreproduce the correct colours and gradations in low-luminance areas
  • Dynamic contrast ratio of 1,000,000:1 by Dynamic Contrast Drive, a new backlight driving system that dynamically changes the backlight luminance to adapt for each frame of a scene
  • 4K/HD scopes with HDR scales that are Waveform/Vector
  • Quad View display and User 3D LUT functionality
  • 12G/6G/3G/HD-SDI with auto configuration

These new monitors will be available in July 2020.

]]>
Lilliput A7S FullHD IPS On-Camera monitor http://www.personal-view.com/talks/discussion/17678/lilliput-a7s-fullhd-ips-on-camera-monitor Tue, 05 Sep 2017 06:53:52 +0000 Vitaliy_Kiselev 17678@/talks/discussions

]]>
HP DreamColor Z27x G2 Studio Display http://www.personal-view.com/talks/discussion/19400/hp-dreamcolor-z27x-g2-studio-display Sat, 07 Apr 2018 10:46:30 +0000 Vitaliy_Kiselev 19400@/talks/discussions image

The HP DreamColor Z27x G2 Studio Display delivers consistent accurate color, features a wide color gamut, high performance IPS Panel and workflow management tools with breakthrough HP DreamColor technology. This 27-inch diagonal display uses an integrated pop-up sensor that calibrates on demand or on a regular schedule. HP worked with leading visual effects studios to create customized solutions for an optimal design process, including onscreen markers, remote management and the world’s first integrated keyboard-based input switching KVM13 to easily switch between devices. Users will experience a broad range of vividly accurate colors from 99 percent DCI P3 coverage, 98 percent Adobe RGB and a 1500:1 contrast ratio. The new HP Z27x joins the HP Z31x DreamColor Studio Display to make a family of the most advanced color-critical displays in the world.


]]>
Asus ProArt PA32UC http://www.personal-view.com/talks/discussion/19170/asus-proart-pa32uc Sat, 10 Mar 2018 16:40:02 +0000 Vitaliy_Kiselev 19170@/talks/discussions image

Specs

  • 32” IPS 3840x2160 panel
  • real 1000 nits
  • 85% Rec.2020, 99.5% Adobe RGB, over 95% DCI-P3 and 100% sRGB
  • 1000:1 contrast
  • Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x4, DisplayPort 1.2
  • USB upstream : USB3.0 Type-B x1
  • USB downstream : USB3.0 Type-A x2, USB3.0 Type-C x1

https://www.asus.com/Monitors/PA32UC/specifications/

]]>
Apple Pro Display XDR - sponsor building of 3rd Tim Cook's yacht http://www.personal-view.com/talks/discussion/22145/apple-pro-display-xdr-sponsor-building-of-3rd-tim-cooks-yacht- Mon, 03 Jun 2019 14:25:35 +0000 Vitaliy_Kiselev 22145@/talks/discussions


The Pro Display XDR will be available this fall for $5,000 or $6,000 with the optional matte coating.

]]>
Portkeys BM5 2000nits metal monitor with waveforms and stuff for $499 http://www.personal-view.com/talks/discussion/22029/portkeys-bm5-2000nits-metal-monitor-with-waveforms-and-stuff-for-499 Wed, 08 May 2019 15:09:42 +0000 Vitaliy_Kiselev 22029@/talks/discussions image

  • 5" 2000NIT Brightness Touch screen 1920x1080 resolution
  • Protection glass with
  • Advanced Features
    • 3D LUT
    • Waveform
    • Guides
    • Zebra, Check Field, Grids, Audio Meters, Tint, Image Flip, Backlight, Color Temperature,
    • Peaking,
    • Zooming,
    • Cross Hair
    • Waveform SDI Output,
    • Camera Control
  • Camera control for multiple models - Take Picture, REC, AV, TV, ISO, Auto Focus, Zoom, Manual Focus...
    • Z CAM E2
    • Sony: FS5, FS7, A9, A7R3, A7M3, A7R2, A7S2, A6000, A6300, A6400, A6500, RX100
    • Canon: EOS C700, EOS C700PL, EOS C700 GSPL, EOS C300 Mark 2, EOS C300 Mark 2 PL, EOS 200, EOS C200B, EOS C100 Mark 2, EOS C100,1D X Mark Ⅱ, 5DS, 5DS R, 5D Mark Ⅳ, 5D Mark Ⅲ, 5D Mark Ⅱ, 6D Mark Ⅱ, 6D, 80D, EOS R
    • Blackmagic: BMPCC, URSA MINI, BMPC
  • Panasonic: GH4, GH5, GH5S
  • Focus puller control - Tilta NUCLEUS-N
  • Inputs - 3G/HD/SD-SDI、HDMI、USB
  • Output - 3G/HD/SD-SDI
  • SONY NP-F970/960/F750/F550

https://suikui.myshopify.com/collections/monitor-on-camera-field/products/bm5-5-2000nit-3g-sdi-hdmi-support-touch-screen-on-camera-monitor-camera-control-for-z-cam-e2-sony-canon-bmpcc?variant=14385337729087&fbclid=IwAR3IKiGEIhQkcTks_lRxyGBthM7xNYZqzKDj1EA9-GZTyqq65lBN9uY-3ls

]]>
MSI Optix MAG161V portable monitor http://www.personal-view.com/talks/discussion/23212/msi-optix-mag161v-portable-monitor Sat, 07 Dec 2019 18:33:40 +0000 Vitaliy_Kiselev 23212@/talks/discussions

]]>
Dell UltraSharp 27 4K PremierColor Monitor UP2720Q http://www.personal-view.com/talks/discussion/22941/dell-ultrasharp-27-4k-premiercolor-monitor-up2720q Mon, 04 Nov 2019 17:54:50 +0000 Vitaliy_Kiselev 22941@/talks/discussions

  • Non HDR - 250nits brightness max
  • 100% Adobe RGB coverage, 98% DCI-P3
  • Will be available on January 15th, 2020
  • $1999

Dell is excited to introduce the Dell UltraSharp 27 4K PremierColor Monitor (UP2720Q) – the world’s first 27-inch 4K monitor with a built-in colorimeter and Thunderbolt 3 connectivity for content creators who require color-critical performance.

Beginning in January 2020, photographers and still or motion picture editing professionals will be able to use this monitor to fully maximize the Adobe RGB color gamut and create brilliant content with precise color and amazing detail. The Dell UltraSharp 27 4K PremierColor Monitor offers 100% Adobe RGB, 98% DCI-P3 and 80% BT2020, providing a wide range of color reproduction across different color space standards. DCI-P3 is increasingly being adopted as a color standard on more devices like smartphones, web browsers and television due to the larger color gamut and higher color accuracy, leading to more content being developed in the DPC-P3 color gamut space.

The built-in colorimeter helps users stay productive and get work done faster with quick and easy calibration – on-demand or scheduled after hours for consistent and optimized color performance every time. Users will also experience a more efficient workflow with a responsive built-in colorimeter that maintains consistency from production to delivery. The UltraSharp 27 4K PremierColor is a CalMAN® Ready monitor and works seamlessly with CalMAN® color calibration software (sold separately) to perform a variety of tasks, including calibration with a built-in or external colorimeter.

]]>

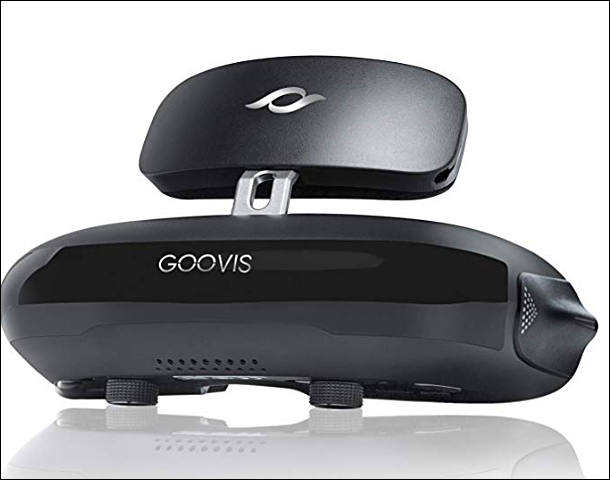

Portable huge monitor on head - GOOVIS G2 Cinema Headset 3D http://www.personal-view.com/talks/discussion/22860/portable-huge-monitor-on-head-goovis-g2-cinema-headset-3d Sat, 26 Oct 2019 09:06:42 +0000 Vitaliy_Kiselev 22860@/talks/discussions image

  • With 2x0.71” Sony customized OLED micro-display, providing 3147PPI and 113% sRGB color super fine quality,like sitting in the center of 800-inch IMAX theater.More extraordinary 3D effect gives you immersive and realistic cinema experience.
  • This is personal theater and can be used to watch movies/videos online by downloading such APPs as YouTube, HuLu ,Netflix, and Amazon Prime,ect. Goovis Cinego comes with 32 GB of internal storage and 256GB TF Card, allowing you to upload and download your favourite recourses. It can be a HD display, contecting intelligent devices with the HDMI interface
  • The total weight of main body is only 7.05oz(200g), which is light and portable,you will enjoy FHD Virtual Giant Screen without weight pressure. Adjustable head strap makes the VR closer to the face, providing more comfortable wearing.

It is more advanced version of famous Sony HMZ headset, not VR thingy.

https://www.amazon.com/Headset-Theater-1920x1080x2-Compatible-Nintendo/dp/B07H289K1J/

]]>

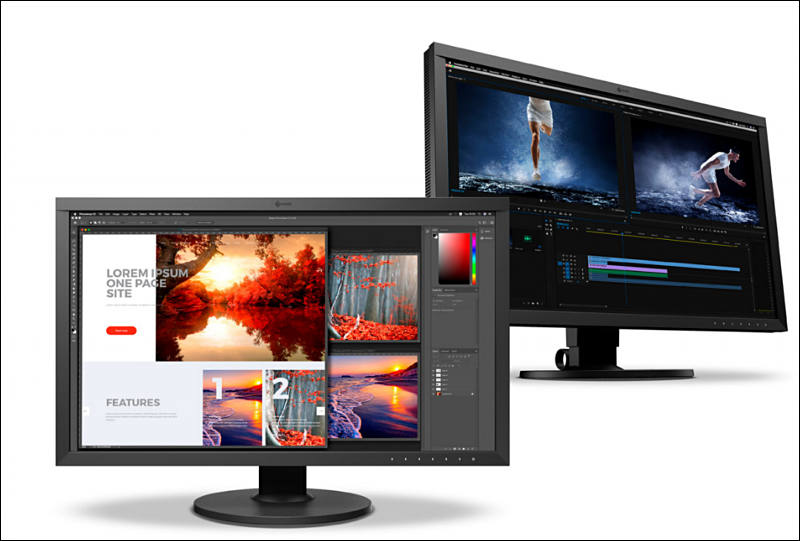

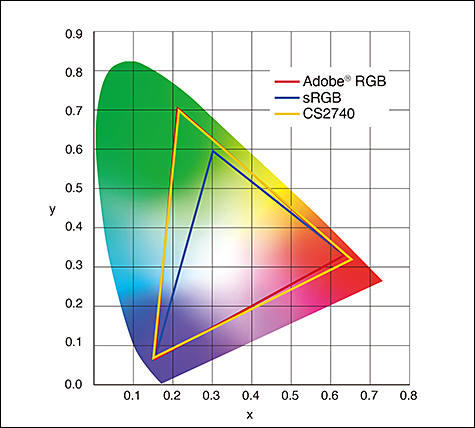

Eizo 27" 4K ColorEdge CS2740 monitor http://www.personal-view.com/talks/discussion/22768/eizo-27-4k-coloredge-cs2740-monitor Fri, 18 Oct 2019 09:44:49 +0000 Vitaliy_Kiselev 22768@/talks/discussions image

  • 3840 x 2160 pixels resolution
  • background uniformity tech
  • USB-C port for connection, that also can be used for power delivery
  • Two USB Type-A ports
  • ColorNavigator 7 software compatible
  • Available starting October 24, 2019,


]]>
Atomos about ProRes RAW Support at IBC 2019 http://www.personal-view.com/talks/discussion/22753/atomos-about-prores-raw-support-at-ibc-2019 Tue, 15 Oct 2019 05:37:47 +0000 Vitaliy_Kiselev 22753@/talks/discussions

]]>
Canon Color Calibration Service For Displays http://www.personal-view.com/talks/discussion/22751/canon-color-calibration-service-for-displays Mon, 14 Oct 2019 05:13:56 +0000 Vitaliy_Kiselev 22751@/talks/discussions

As High Dynamic Range (HDR) content production continues to become more popular, the need for finely calibrated displays has become more critical. With numerous evolving HDR formats, it is only through calibration that the artistic vision can be fully enjoyed. In response to this growing demand, Canon U.S.A. Inc., a leader in digital imaging solutions is excited to announce it will now be offering a color calibration service for display products. The fee-based service can be performed on Canon’s lineup of reference displays as well as displays from other manufacturers. As a well-established industry leader in Service and Support, Canon’s commitment to professionals is further cemented with the introduction of this new service offering.

Clients of this service will have Imaging Science Foundation (ISF) certified Canon professionals visit them on-site, so that the calibration is tailored specifically to their viewing environment. During a calibration session, several key image quality elements will be measured such as, white point, primary and secondary color chromaticity, luminance and gamma. Each attribute will be adjusted to best match the industry standard that fits the client’s needs. Clients will also be provided with detailed pre- and post-calibration reports – removing ambiguities as to how each display is performing.

“At Electric Entertainment we had an exceptional experience with Canon’s on-site service and support reference display color calibration service that included HDR and SDR alignments,” noted Bill Ritter, Head of Engineering for Electric Entertainment. “In our case, we needed color calibration assurance in P3D65, DCI XYZ and head/full range REC 709 color spaces. The Canon representatives’ expertise and one-on-one experience was second to none. Any of our questions were answered quickly and professionally.”

Canon’s color calibration service is available now. For more information about the service or to set-up a free consultation with a Canon calibration professional, please visit usa.canon.com/calibration.

]]>

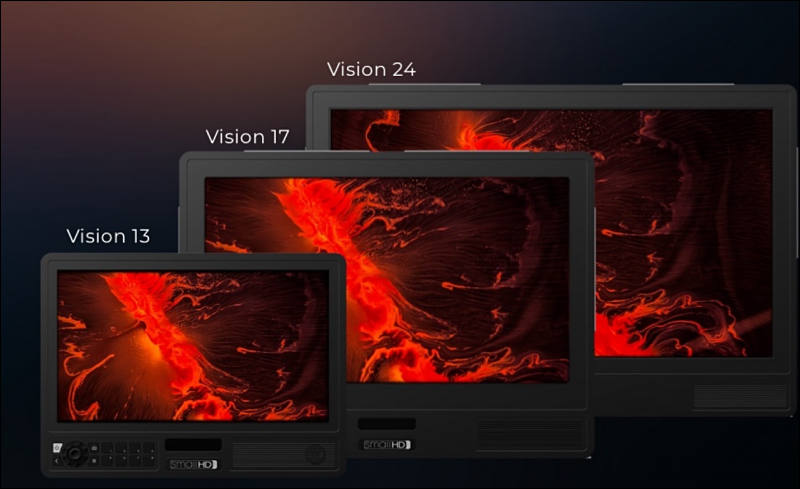

SmallHD Cine and Vision series monitors http://www.personal-view.com/talks/discussion/22713/smallhd-cine-and-vision-series-monitors Mon, 07 Oct 2019 00:44:04 +0000 Vitaliy_Kiselev 22713@/talks/discussions Vision series


  • HDR with 1000000:1 contrast ratio
  • 2000+ zone local dimming array
  • 114% DCI P3 Coverage
  • 4x independent 12G-SDI Inputs
  • A full suite of exposure tools for precise control of HDR cinematography

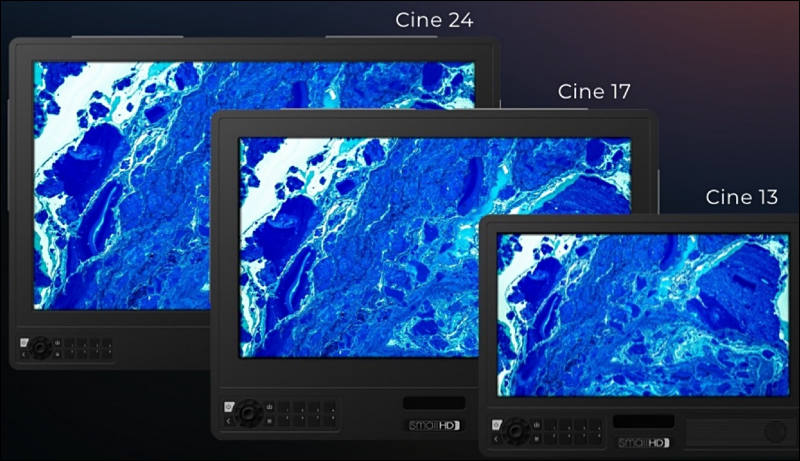

Cine series


  • Daylight viewable with 1000 & 2500 nit panels
  • 100% DCI P3 wide color gamut
  • 13, 17, 24-inch models
  • 4x independent 12G-SDI inputs
  • A full suite of exposure tools for precise control of 4K cinematography
  • Cine Series 4K High Bright Field Monitor
]]>
Hollyland Mars-400S Wireless Video System http://www.personal-view.com/talks/discussion/22641/hollyland-mars-400s-wireless-video-system Mon, 23 Sep 2019 16:29:02 +0000 Vitaliy_Kiselev 22641@/talks/discussions

]]>

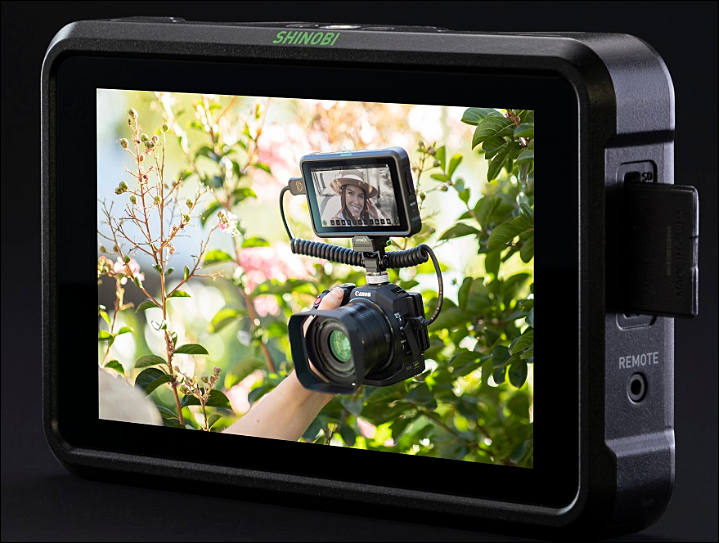

Atomos Shinobi 5" 1000nits HDMI and SDI monitors http://www.personal-view.com/talks/discussion/21546/atomos-shinobi-5-1000nits-hdmi-and-sdi-monitors Fri, 15 Feb 2019 06:35:24 +0000 Vitaliy_Kiselev 21546@/talks/discussions image

PR

Go everywhere and see everything exactly how you want it with the Atomos Shinobi - a high brightness 1000nit 5-inch HDMI monitor that’s perfect for vloggers, creatives and photographers. When you’re shooting video on mirrorless cameras and DSLRs, the Shinobi gives you the perfect view and is packed with the latest features, but is small and light enough to take anywhere – weighing in at a mere 200g (7 oz). Shinobi shares the same HDR 1920x1080 display and color processing found in the multi-award-winning Atomos Ninja V monitor/recorder. With a professional 1000nit brightness screen it can be seen clearly even in daylight. It has an impressive pixel density of 427 PPI (pixels per inch) and is factory calibrated for color accuracy. Shipping today, the Shinobi costs just $399US / €399 plus local taxes.

The polycarbonate body is lightweight and durable. It has ¼” - 20 mount points on the top and bottom to allow flexible mounting. A headphone jack on the side allows users to monitor audio from most cameras even if it doesn’t have a built-in one. Clear on-screen audio level meters give users confidence that their audio is set correctly.

Shinobi can run for up to six hours on a single Sony NP-F750 type battery, already commonly found in most video shooters’ kit bags. A clear on-screen battery gauge shows the status of the battery and when it is running low. The central position of the battery mount on the rear of the Shinobi ensures good balance when mounted to mirrorless cameras.

Atomos is well known for its AtomOS 10 system with simple to use touch-screen interface. The Shinobi has the latest monitoring features of AtomOS 10, allowing users to quickly and easily check and adjust image settings to best capture their creative intent. In moments they can magnify the image or engage peaking to check focus, pull up false color, a histogram, zebras or waveform to gauge exposure, or add guides or markers to aid composition. The interface has clear, yet unobtrusive icons which allow the image to be the focus of attention – and with a simple swipe all the menus go away for a totally clear view. These features allow the user to really concentrate on their shot and its framing. Vloggers will especially value the flip-screen function which mirrors the image when you are filming yourself talking to your audience.

Atomos CEO Jeromy Young said, “Our single biggest customer request has been a stand-alone Photo and Video monitor – Shinobi answers that call. We’ve taken our pro color and HDR processing and designed a super lightweight monitor that any YouTuber or IGTV creator can afford.”

For broad compatibility the Shinobi’s HDMI port can accept signals up to 4K (4096x2160) at 30fps, or HD video up to 60fps. The screen can also perfectly display 10+ stops of dynamic range when being used with Log or HLG HDR outputs. Atomos’ advanced color science gives a complete range of in-built gamma presets to match popular cameras when shooting Log or HLG.

Creative users who want to see their Log or flat images with a creative look applied can easily load LUTs directly into the Shinobi’s built-in memory. Simply place a compatible LUT onto a SD card and pop it into the Shinobi, then load it into one of Shinobi’s eight internal preset LUT memories. Once done any of the eight LUTs can be recalled immediately for speedy comparison. In addition, countless more LUTs can be kept on the SD card and loaded in when needed. The same SD card slot can also be used to install any future firmware updates.

For more advanced uses the Shinobi features a new multi-tool Analysis view that simultaneously shows the image, plus waveform, histogram, vectorscope and audio-level meters. In addition, there are multiple options inside each of these tools. This give the operator a complete picture of what is going on in the image at any time.

Although the Shinobi is designed primarily for smaller cameras, its advanced features mean that users of larger cine cameras, traditional camcorders or other Atomos monitor/recorders may also find it an excellent additional monitor for their needs. It also enables operators on multi-camera shoots to have the same high quality HDR monitoring on additional cameras.

If shooting Log or HLG HDR the Shinobi features the Atomos HDR engine that allows the operator to see more dynamic range on screen at once. Users simply engage a dedicated preset for their camera and around 10 stops of dynamic range are shown, giving an accurate representation of the image in HDR while shooting. It can also be used to give a much better indication of what the image can look like after post production. You can also connect the Shinobi to your Mac or PC for use as an extra monitor while editing – even in the field.

A major benefit of Shinobi is that it can be properly color-calibrated using free Atomos software and the X-rite i1Display Pro probe. All monitors’ colors drift over time and routine calibration ensures that the colors remain as accurate as when they originally left the factory.

Photographers can also benefit from using Shinobi for their work. Instead of composing and assessing an image on the small built-in camera LCD screen the Shinobi affords photographers a larger, clear view of their all-important shot. Having a Shinobi and your camera in live-view gives a color accurate preview, plus instant review of composition, exposure and focus during a shoot. Landscape and studio photographers in particular can benefit from this way of working.

The Atomos Shinobi is available now from authorized Atomos dealers.

]]>

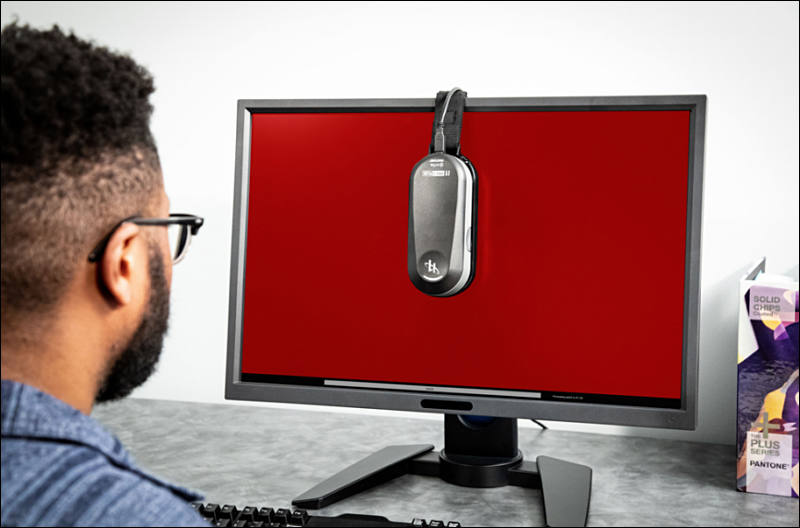

X-Rite i1Display Studio and Pro Plus Colorimeters http://www.personal-view.com/talks/discussion/22575/x-rite-i1display-studio-and-pro-plus-colorimeters Fri, 13 Sep 2019 05:14:48 +0000 Vitaliy_Kiselev 22575@/talks/discussions image

Specs

  • Technologically advanced i1Display Studio instrument:  an ergonomically designed colorimeter with advanced optical technology and filter set.
  • 3-in-1 functionality designed to easily switch between display or projector profiling and ambient light capture.
  • i1Studio software for display and projector profiling.
  • Mobile Device Calibration with free ColorTRUE mobile app.
  • Intelligent Iterative Profiling to accurately measure the colour capabilities of a display.
  • Custom control of white point, luminance, contrast ratio and gamma.
  • Colour match up to four separate displays for colour accuracy.
  • Measurement and compensation of ambient lighting conditions.
  • FlareCorrect™ for display surface flare measurement and compensation.
  • Video Standards Support: NTSC, PAL SECAM, Rec. 709, Rec. 2020 and DCI-P3.
  • Profile validation and reminder to view before and after results with included images or load your own.


i1Display Pro Plus in addition to i1Display Pro can do:

  • Accurately measure luminance/brightness levels up to 2000 nits.
  • Obtain correct neutral detail levels and higher accuracy in dark colours with new black current subtraction technology, especially beneficial on OLED displays or any display that can achieve close to zero black point.
  • BT.1886 default gamma curve – the standard for HDTV – is especially beneficial for 3D LUT workflows and HDR supported displays.
  • USB-C compatible with included USB-C to USB-A adapter.

New kits also:

  • i1 ColorChecker Photo Kit -- includes i1Display Studio and ColorChecker Passport 2
  • i1 ColorChecker Pro Photo Kit -- includes i1Display Pro and ColorChecker Passport 2
  • i1 ColorChecker Filmmaker Kit -- includes i1Display Pro Plus and ColorChecker Video
]]>
Canon 4K DP-V3120 Reference Display http://www.personal-view.com/talks/discussion/22569/canon-4k-dp-v3120-reference-display Thu, 12 Sep 2019 07:43:13 +0000 Vitaliy_Kiselev 22569@/talks/discussions image

Canon U.S.A. Inc., a leader in digital imaging solutions, today announced the launch of the DP-V3120, a new 31-inch professional 4K reference display that possesses an industry-leading* edge-to-edge luminance of up to 2,000 cd/m2 and a black level of 0.001 cd/m2. This combination creates a contrast ratio of an astounding 2000000:1**. When combined with the benefits of Canon’s award-winning HDR Toolkit, this display delivers a powerful combination of features and utilities for high-end HDR and 4K production workflows.

“HDR content is the latest frontier in creating television and movies that more closely resemble the look and feel of the world around us,” said Kazuto Ogawa, president and COO, Canon U.S.A., Inc. “With the new DP-V3120 4K Reference Display, Canon is equipping postproduction houses with the high brightness, rich black levels and high contrast ratio which helps properly monitor and develop video with high dynamic range. Together with the built-in suite of utilities that comprise our HDR Toolkit, we have created the proverbial total package for HDR production.”

The DP-V3120 features a display engine, improved local dimming algorithm and LED backlighting system designed by Canon and an IPS LCD panel. The color reproduction, high resolution and high contrast featured on the display enable accurate checking of content captured in 4K and/or HDR.

The DP-V3120 exceeds the Dolby Vision™ required monitor specifications*** including General Monitor Specifications and Grey Scale Reproduction to meet the requirement of Dolby Vision™ certified post-production facilities. With this achievement, Canon further proves its ability to support the efficient production of high-quality visual content and meet the various needs of content production workflows.

The display also features 12G-SDI terminals (four IN and four OUT) to enable simultaneous comparing of HDR and SDR content in dual view mode, multiple video inputs in quad view mode, or up to an 8K input signal. Other functions include the HDR Toolkit, featuring HDR capable vectorscope, waveform monitor and histogram. False color analysis, pixel level value checking and split screen HDR versus SDR comparison are also possible. In addition, the DP-V3120’s LAN interface allows the display to be controlled remotely over a network using a web browser.

Pricing and Availability

The DP-V3120 is currently scheduled to be available in November for an estimated retail price of $39,000****. For more information, please visit, usa.canon.com/provideo.

]]>
Asus HDR ProArt Display 1600-nit premium price display http://www.personal-view.com/talks/discussion/22537/asus-hdr-proart-display-1600-nit-premium-price-display Sat, 07 Sep 2019 23:30:58 +0000 Vitaliy_Kiselev 22537@/talks/discussions image

Asus must hugely thank Apple as it allow them to set huge margins on quite ordinary monitor (besides backlight).

PR

Since the launch of the first ProArt display in 2011, ASUS has been committed to meeting the specific needs of professional content creators and has been recognized with over 400 industry awards. The content-creator market is expanding at a rapid pace and there are now more than 200 million PC-based creators worldwide, according to Intel research[1].

To meet the evolving needs of professional workflows in traditional content-creation fields, such as photography and videography, as well as provide new solutions for 3D designers, game developers and professionals in other creative disciplines, ASUS is introducing a brand-new lineup of ProArt products. Designed as a complete digital solution for content creation, these new ProArt devices deliver absolute precision for original imagination, extreme performance for unstoppable creation, versatile connectivity for seamless speed and promised stability for proven reliability. This new ProArt lineup represents the foundation of a comprehensive content-creation solution that will continue to grow with innovative new products designed to be the best companions for creators.

"With ProArt, ASUS has always been dedicated to delivering precision tools that empower creative professionals to do their best work," said Mr. Samson Hu, ASUS Co-CEO. "I'm thrilled to be at IFA 2019 to announce our all-new, expanded ProArt lineup that takes our dedication to a new level, equipping more creative professionals than ever with a complete digital solution that enables them to achieve their artistic visions."

“Content creators are more mobile than ever and must keep up with tight deadlines and complex workflows,” said Bob Pette, vice president of professional visualization at NVIDIA. “The latest ASUS ProArt lineup, punctuated by the world’s fastest laptop, carries the RTX Studio badge and is powered by NVIDIA RTX GPUs. They deliver high-end desktop performance and portability, so artists and designers can visualize and create their best work faster than before.”

The spark of inspiration can ignite at any time and content creators need a trusted, professional platform that matches the way they work and gives them the power to realize their creative vision. ProArt is inspired by creative professionals. It is designed with precision to go above and beyond the exacting standards professionals demand in order to provide immersive tools that support the creative process to bring the best ideas to life.

Together with the announcement of the new ProArt lineup, ASUS is launching the I am ProArtist campaign. Creators can submit their best 2D or 3D digital artwork or an original film clip for a chance to win ProArt products, including ProArt Display PA27AC, ProArt Display PA32UC, ProArt Station PA90, ProArt StudioBook Pro 17 and Mini PC PB60G. Full details are available at the campaign website: https://www.asus-campaign.com/iamproartist/

ProArt Display PA32UCG

ASUS ProArt Display PA32UCG is the world's first HDR 1600 and 120Hz variable-refresh rate professional display. It features 4K UHD resolution and mini LED backlighting that delivers industry leading brightness and color performance for the critical visual workflows of filmmakers, broadcasters and game developers. ProArt Display PA32UCG is VESA pre-certified for DisplayHDR 1400, the industry’s latest and highest standard of HDR performance.

Featuring 1,152 individual mini LED backlights with local dimming that enable 1,000 nits of full-screen sustained brightness, 1,600 nits of peak brightness and a 1,000,000:1 contrast ratio, ProArt Display PA32UCG delivers exceptional high-dynamic range (HDR) performance and supports all major HDR standards, including Dolby Vision®, Hybrid Log-Gamma (HLG) and HDR10.

ProArt Display PA32UCG also features quantum-dot technology, enabling it to display a wide color gamut with DCI-P3, Adobe RGB, sRGB, Rec. 709 and Rec. 2020 color space support. With true 10-bit color depth and a three-level factory color pre-calibration process, ProArt Display PA32UCG delivers incredibly accurate color (Delta-E < 1) out of the box, and built-in ProArt Hardware Calibration technology with color profile write-back to the display ensures continuous accuracy for dependable ongoing performance.

Adaptive-Sync enables a 48–120Hz variable refresh rate (VRR) that eliminates visual smearing, tearing and motion blur, making ProArt Display PA32UCG a welcome addition to game-development workflows. Additionally, the display offers rich connectivity with two Thunderbolt™ 3, one DisplayPort and three HDMI ports as well as a built-in USB hub, enabling content creators to connect a wide variety of devices and enjoy ultrafast transfer speeds with external storage.

ProArt Creator Center

The ProArt Creator Center app delivers the optimal creation experience across all ProArt devices, enabling color calibration, performance optimization and synchronization. It lets users calibrate the display of their devices at any time and sync visual settings with connected ProArt devices. ProArt Creator Center also enables easy monitoring and optimization of system performance during production and even frees users from having to wait at their machine during rendering by letting them monitor progress on their smartphone or other mobile device.

IFA presentation

]]>
Teradek Bolt 4K 1500 http://www.personal-view.com/talks/discussion/22478/teradek-bolt-4k-1500 Mon, 26 Aug 2019 08:24:30 +0000 Vitaliy_Kiselev 22478@/talks/discussions

]]>
Royole FlexPai Foldable Phone and flexible OLED screens http://www.personal-view.com/talks/discussion/21362/royole-flexpai-foldable-phone-and-flexible-oled-screens Mon, 21 Jan 2019 09:16:00 +0000 Vitaliy_Kiselev 21362@/talks/discussions

]]>
BenQ 27" SW270C Monitor with Color Uniformity http://www.personal-view.com/talks/discussion/22307/benq-27-sw270c-monitor-with-color-uniformity- Sun, 21 Jul 2019 20:04:06 +0000 Vitaliy_Kiselev 22307@/talks/discussions image

Specs

PR

​BenQ America Corp., a world-leading display technology and solutions provider, announced today the release of its SW270C monitor, part of the PhotoVue Photographer Photo Editing Monitor Series. Created for photographers, videographers, artists and designers, the 27-inch monitor incorporates state-of-the-art AQColor™ Technology to provide users with consistent color accuracy, while enhancing their workflow and productivity.

New to the SW270C is the Color Uniformity Technology, which includes screen-wide precise color from corner to corner, while utilizing BenQ’s AQColor technology, led by a team of color experts, to deliver an accurate and brilliant color experience. Additionally, the SW270C comes factory calibrated with a color performance report to ensure out-of-the-box color accuracy, so users can trust their monitor from the moment they start using it.

The SW270C covers 99% of Adobe RGB, 100% of sRGB/Rec. 709, and 97% of DCI-P3/Display P3. With the 16-bit LUT to improve RGB color blending accuracy, the monitor creates impeccable color reproduction and renders the truest and most representative view of original imagery. To further enhance image quality, the SW270C includes hardware calibration that allows images to remain consistent with the original content without being affected by graphics card settings.

In order to maintain the color performance, the SW270C incorporates Palette Master Element calibration software so users can customize the color settings on the monitor at their most optimal state. Additionally, the SW270C is equipped with HDR10, allowing for previewing the HDR effect on the content during the editing process to ensure the outcome of the final product. The monitor also features a native cadence for 24p and 25p content, so that film content shot at 24 or 25 fps can be played back without a pulldown.

For enhanced efficiency and smooth workflow, the SW270C has a newly redesigned Hotkey Puck that allows creative professionals to use the on-screen display to customize shortcuts to preferred color modes and other desired features, increasing overall productivity. The SW270C also includes a specially designed shading hood attachment to reduce the monitor’s screen glare from ambient lighting to guarantee color accuracy. Equipped with the latest USB-C port, the monitor allows high-speed transmission of video, audio and data as well.

“The SW270C provides creative professionals with a comprehensive monitor solution to ensure that their work is always produced at its highest quality,” said Steve Yang, senior director at BenQ America Corp. “With the latest color accuracy technology and tools to enhance workflow and experience, the new addition to our PhotoVue Series is an excellent option for those in photography, videography, design and more.”

The BenQ SW270C monitor is now available at B&H Photo for a retail price of $799.99. The monitor will also be available at BenQ Direct, Amazon, Best Buy and Newegg by August 1.


]]>
New ColorChecker Charts http://www.personal-view.com/talks/discussion/22195/new-colorchecker-charts Wed, 19 Jun 2019 04:49:43 +0000 Vitaliy_Kiselev 22195@/talks/discussions image

  • ColorChecker Classic Nano: 1x1.75" (24x40mm) -- for macro or close up photography.
  • ColorChecker Classic Mini: 2.5x4.25"( 63.5x109 mm) -- for archival photography or where the protective case of the Passport is too cumbersome.
  • ColorChecker Classic XL: 21x14.75" (53.3x37.5 cm) -- for photographers working in large studios, doing long distance photography or camera/lighting testing. This target is available in three configurations: target only, target plus sleeve, target plus case.
  • ColorChecker Classic Mega: 40x60" (100x152 cm) -- for photographers working on large sets and doing extreme distance photography or camera/lighting testing.
  • ColorChecker Video Mega: 40x60" (100x152 cm) -- for filmmakers working on large sets and doing extreme distance filmmaking or camera/lighting testing.
]]>
PortKeys LH5T and LH5S and special EVF cage for them http://www.personal-view.com/talks/discussion/22196/portkeys-lh5t-and-lh5s-and-special-evf-cage-for-them Wed, 19 Jun 2019 05:02:42 +0000 Vitaliy_Kiselev 22196@/talks/discussions

]]>
SmallHD Cine 7 monitor can control your camera http://www.personal-view.com/talks/discussion/21865/smallhd-cine-7-monitor-can-control-your-camera Mon, 08 Apr 2019 12:20:32 +0000 Vitaliy_Kiselev 21865@/talks/discussions

]]>
